ZYLAB W Shaped Silicon Carbide Heating Element

Introduction

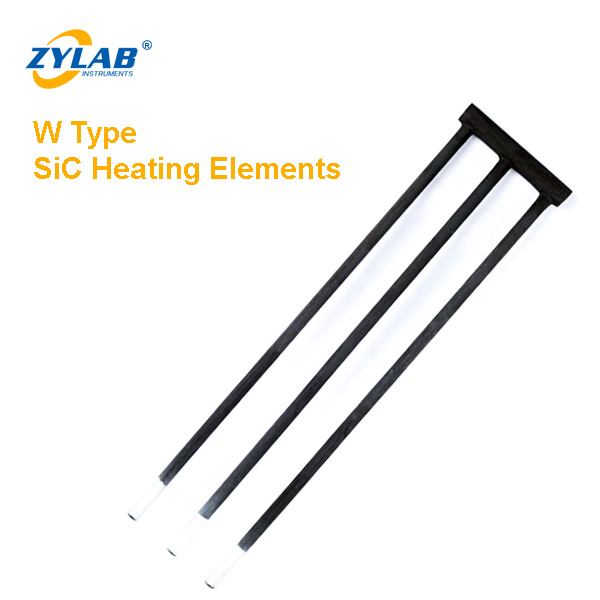

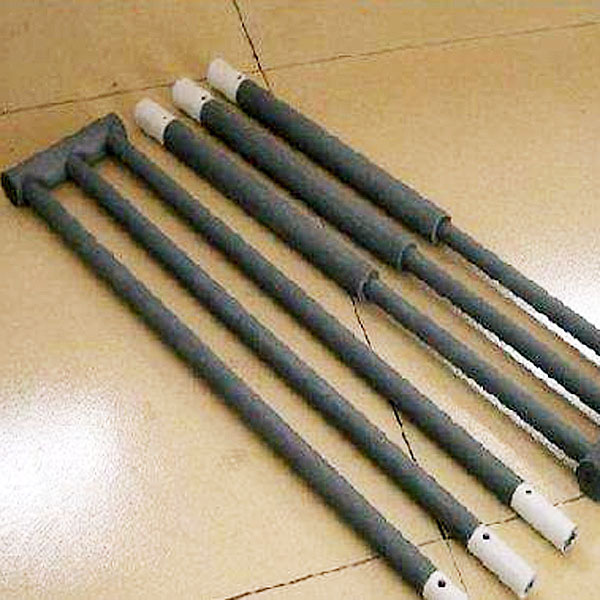

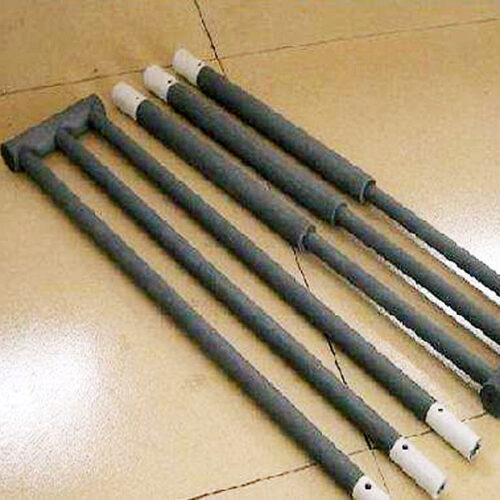

The W Shaped Silicon Carbide Heating Element is a high-performance SiC heater designed with three shanks, shaped like the letter “W”. This configuration is especially suitable for horizontal installation in large industrial or laboratory furnaces, providing excellent thermal uniformity, balanced electrical loading, and longer service life in demanding environments.

Manufactured using recrystallized silicon carbide, ZYLAB W Shaped heating elements operate efficiently in temperatures up to 1500°C in oxidizing or neutral atmospheres.

Available Models & Customization

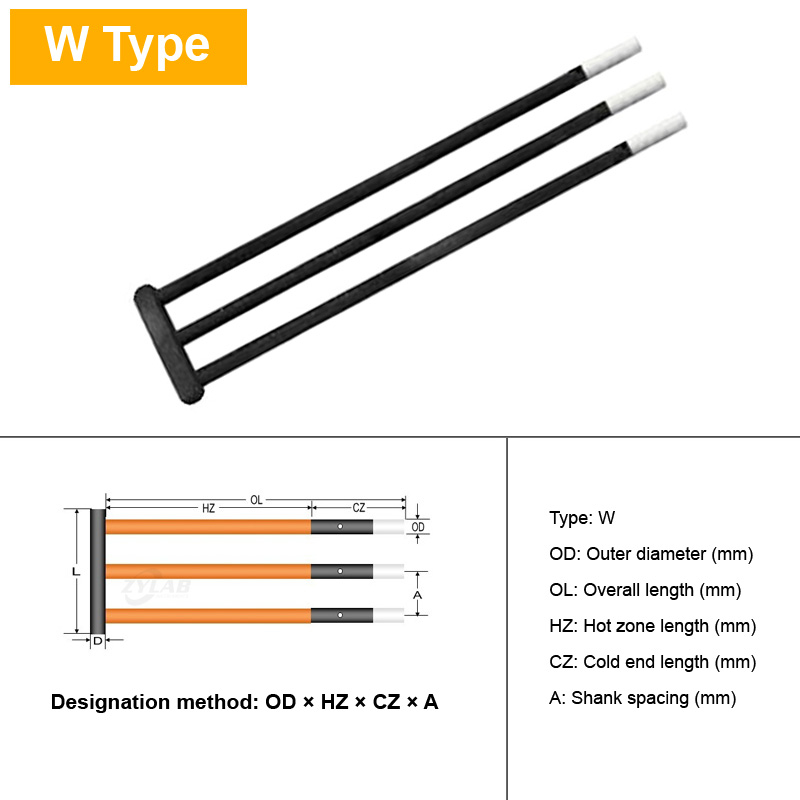

Type: W

OD: Outer diameter (mm)

OL: Overall length(mm)

HZ:Hot zone length(mm)

CZ: Cold end length (mm)

A: Shank spacing (mm)

Standard Diameters: 14、16、18、20、25、30 mm

Voltage: 220V–380V (customizable)

Custom Specs Example: OD = 18 mm, HZ = 400 mm, CZ = 450 mm, A = 70 mm

Need help with specifications?

Share your parameters and we’ll deliver a tailor-made solution.

Contact us for free consultation or a quote!

ZYLAB also offers a full range of accessories for SiC heating elements to ensure safe and efficient installation.

Applications of W Shaped Silicon Carbide Heating Element

• Ceramic and Powder Metallurgy Sintering Furnaces

• Horizontal High-Temperature Box Furnaces

• Glass Melting and Annealing Ovens

• Laboratory and Pilot-Scale Furnaces

• Heat Treatment of Metals and Alloys

• Industrial Kilns and Continuous Heating Systems

• High-Temperature Debinding and Pre-sintering

Features & Benefits

• Maximum Working Temperature: 1500°C

• W-shaped three-leg design for stable horizontal positioning

• Made of high-purity recrystallized silicon carbide (SiC)

• High power density and energy efficiency

• Easy to replace and install in box or tunnel furnaces

• Custom resistance values and dimensions available

• Ideal for applications requiring wide heating zones
