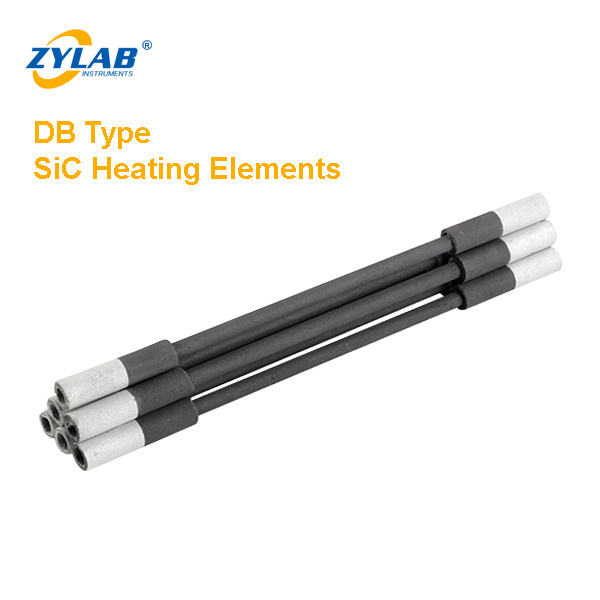

ZYLAB DB Type Silicon Carbide Heating Element
Introduction
The DB Type Silicon Carbide Heating Element features a uniform-diameter hot zone (HZ) with two equal-diameter cold ends (CZ). This element is optimized for vertical or horizontal installation in high-temperature furnaces operating up to 1500°C. Its unique configuration minimizes terminal heat loss and improves thermal efficiency, making it ideal for industrial heat treatment, ceramics sintering, and laboratory furnaces.
ZYLAB offers both standard and custom DB-type SiC heaters, engineered for stability, long service life, and precise resistance control.
Available Models & Customization

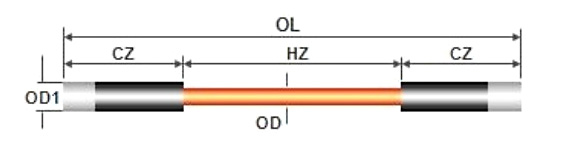

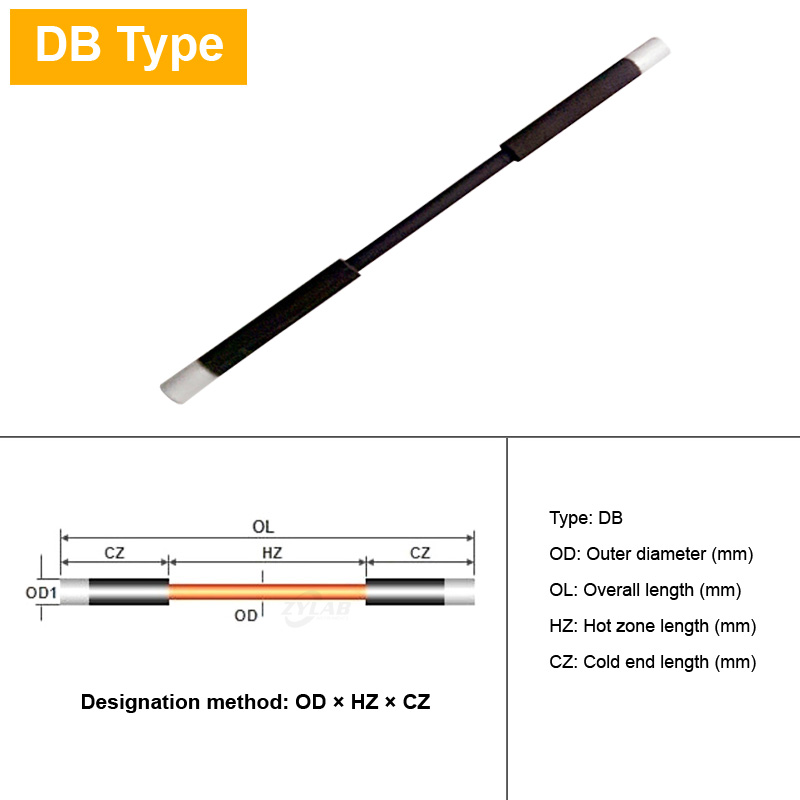

Type: DB
OD: Outer diameter (mm)
OL: Overall length(mm)
HZ:Hot zone length(mm)
CZ: Cold end length (mm)
| OD(mm) | HZ(mm) | CZ(mm) | OD1(mm) | Resistance Range |
| 8 | 180 | 60 | 14 | 2.6-5.2 |
| 8 | 180 | 150 | 14 | 2.6-5.2 |
| 8 | 150 | 150 | 14 | 2.2-4.5 |
| 8 | 180 | 180 | 14 | 2.6-5.2 |
| 8 | 200 | 150 | 14 | 2.9-5.8 |
| 12 | 150 | 200 | 20 | 1.1-2.2 |
| 12 | 200 | 200 | 20 | 1.4-2.9 |
| 12 | 250 | 200 | 20 | 1.8-3.8 |
| 14 | 180 | 150 | 22 | 1.3-2.3 |
| 14 | 150 | 250 | 22 | 0.9-1.8 |
| 14 | 200 | 250 | 22 | 1.2-2.3 |
| 14 | 250 | 250 | 22 | 1.5-3.0 |
| 14 | 300 | 250 | 22 | 1.8-3.5 |
| 14 | 400 | 350 | 22 | 2.3-4.7 |
Standard Diameters: 8、12、14、18、25、30 mm
Voltage: 220V–380V (customizable)
Custom Specs Example: OD = 12 mm, HZ = 200 mm, CZ = 200 mm, OD1 = 20 mm
Need help with specifications?
Share your parameters and we’ll deliver a tailor-made solution.
Contact us for free consultation or a quote!
ZYLAB also offers a full range of accessories for SiC heating elements to ensure safe and efficient installation.
Applications of DB Type Silicon Carbide Heating Element
-
Ceramic Kilns and Sintering Furnaces
-
Powder Metallurgy and Metal Heat Treatment
-
Laboratory High-Temperature Furnaces
-
Debinding and Pre-Sintering Systems
-
Glass Melting and Annealing Ovens
-
Horizontal and Vertical Industrial Furnaces
-
High-Efficiency Electric Thermal Systems
Features & Benefits
-
Maximum Operating Temperature: 1500°C (in air)
-
Straight hot zone structure
-
Made from high-purity recrystallized silicon carbide
-
Efficient electrical and thermal performance
-
Ideal for vertical or horizontal mounting
-
Replaceable and customizable to suit your furnace configuration
-
High power loading and resistance to thermal shock
