ZYLAB U Type Silicon Carbide Heating Element
Introduction

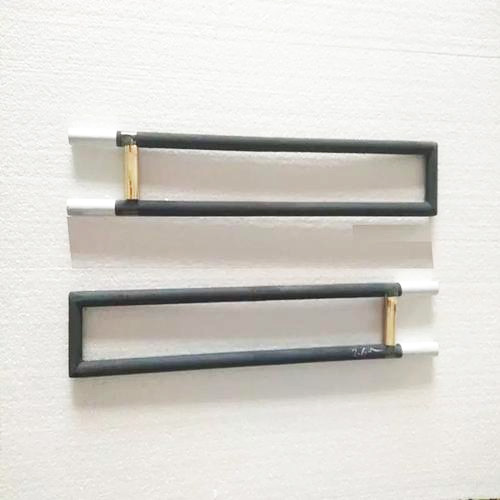

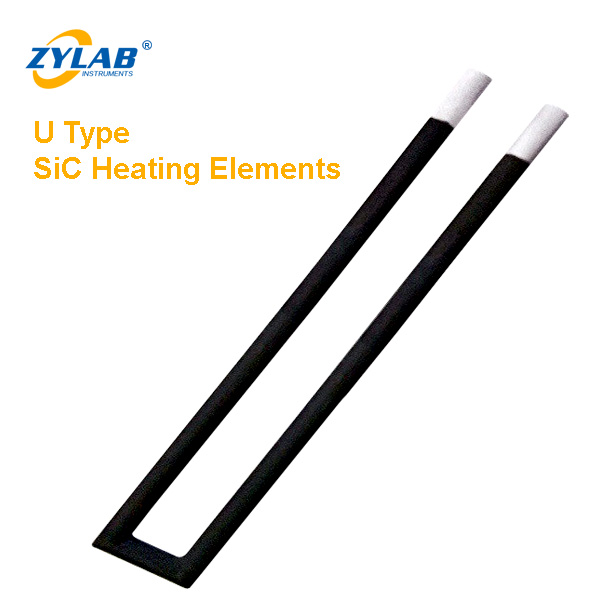

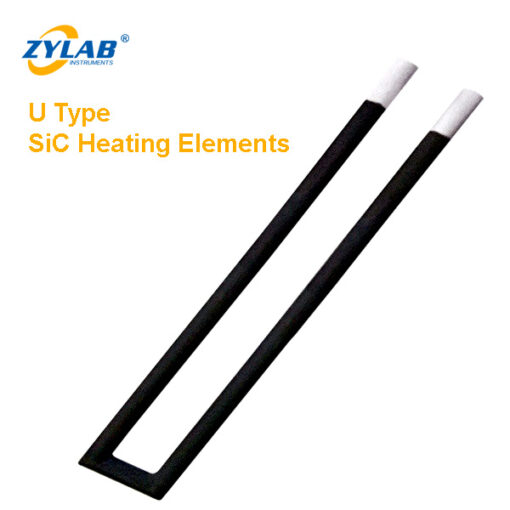

ZYLAB U Type Silicon Carbide Heating Element is a high-performance, double-leg SiC heater designed for use in high-temperature electric furnaces up to 1500°C.
With two heating legs connected by a non-heating cold end, this element is ideal for vertical or horizontal installation, offering uniform heating, long service life, and excellent oxidation resistance.
ZYLAB provides a wide range of standard sizes and supports custom fabrication based on your furnace design and process requirements.
Available Models & Customization

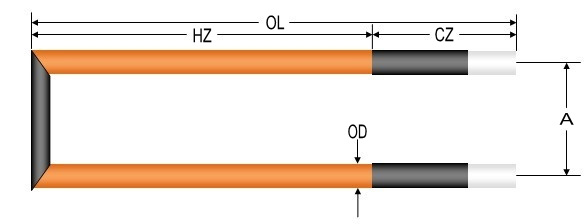

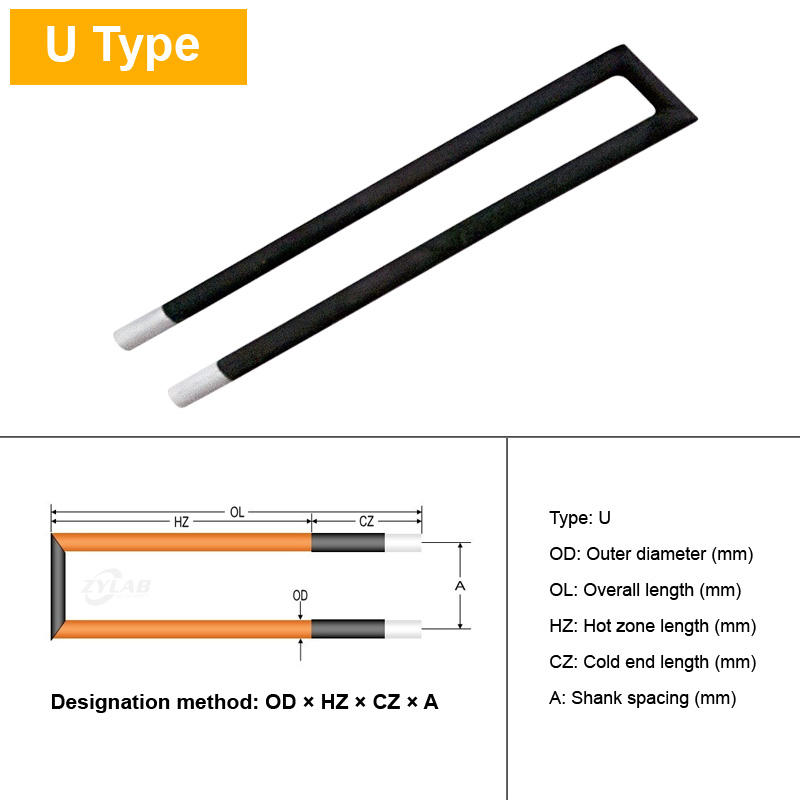

Type: U
OD: Outer diameter (mm)
OL: Overall length(mm)
HZ:Hot zone length(mm)
CZ: Cold end length (mm)
A: Shank spacing (mm)
| OD(mm) | HZ(mm) | CZ(mm) | A(mm) | Resistance Range |
| 14 | 200 | 250 | 40 | 2.4-4.6 |
| 14 | 250 | 300 | 50 | 3.0-6.0 |
| 14 | 300 | 350 | 60 | 3.6-7.0 |
| 16 | 200 | 250 | 40 | 1.4-2.8 |
| 16 | 250 | 300 | 50 | 1.8-3.6 |
| 16 | 300 | 350 | 60 | 2.0-5.0 |
| 18 | 300 | 350 | 60 | 2.0-5.0 |
| 18 | 400 | 400 | 70 | 2.8-5.8 |
| 18 | 500 | 450 | 75 | 3.6-7.2 |
| 20 | 250 | 300 | 50 | 1.8-3.6 |
| 20 | 300 | 350 | 60 | 2.0-5.0 |
| 20 | 400 | 400 | 70 | 2.8-5.8 |
Standard Diameters: 14、16、18、20、25、30 mm
Voltage: 220V–380V (customizable)
Custom Specs Example: OD = 16 mm, HZ = 300 mm, CZ = 350 mm, A = 60 mm
Need help with specifications?
Share your parameters and we’ll deliver a tailor-made solution.
Contact us for free consultation or a quote!
ZYLAB also offers a full range of accessories for SiC heating elements to ensure safe and efficient installation.
Applications of U Type Silicon Carbide Heating Element
-
Laboratory Furnaces
For materials testing, thermal analysis, and academic research requiring temperatures up to 1500°C. -
Ceramic and Glass Processing
Used in sintering, annealing, glazing, and softening processes of technical ceramics and specialty glass. -
Metallurgical Heat Treatment
Suitable for hardening, tempering, and annealing of metal components and powder metallurgy sintering. -
Electronic Component Aging
Applied in burn-in ovens and thermal aging chambers for testing electronic parts under high temperatures. -
Debinding and Pre-sintering
For binder removal and pre-sintering of metal, ceramic, and composite parts in additive manufacturing. -
Industrial Box and Tunnel Kilns
As heating elements in continuous or batch kilns for production-scale thermal processing. -
Crystal Growth and Semiconductor Processing
Supporting high-purity, high-temperature processes in crystal growth and material research.
Features & Benefits
-
Maximum Operating Temperature: 1500°C
-
U-shaped structure with dual heating legs for even temperature distribution
-
Oxidation-resistant recrystallized SiC material for stable performance in air
-
Available in various diameters, hot zone lengths, and cold end configurations
-
Easy to replace and install, suitable for vertical or horizontal mounting
-
Custom design available for different furnace shapes and power ratings
-
Compatible with lab furnaces, industrial kilns, and thermal processing systems
