Normalizing – Stronger Steel through Air Cooling

Normalizing is another essential heat treatment process used in metallurgy and materials engineering. In this article, we continue our Heat Treatment Series by explaining the definition, purpose, and unique features of normalizing, while also comparing it to annealing.

What is Normalizing?

Normalizing is a heat treatment process in which steel or alloy is:

Heated above the AC3 (or ACm for alloy steels) temperature, typically 30–50°C higher.
- For carbon steels: usually 850–950°C.
Held (soaked) at this temperature long enough for complete transformation into austenite.
Cooled in still air at room temperature instead of furnace cooling.

This controlled heating and air cooling process produces a refined grain structure, improving both mechanical properties and machinability.

Key Parameters of Normalizing

Parameter	Typical Range	Notes
Heating temperature	AC3 + 30–50°C (850–950°C for medium carbon steel)	Higher than annealing
Holding time	1–2 hours depending on thickness	Ensures complete austenitization
Cooling method	Air cooling (1–10°C/s)	Faster than annealing

Purpose of Normalizing

Normalizing offers several benefits:

Refines Grain Structure – Produces finer pearlite and ferrite grains compared to annealing.
Improves Mechanical Properties – Increases hardness (typically 160–220 HV for steels) and strength while maintaining good ductility.
Enhances Machinability – Provides a balance between softness (for machining) and strength.
Homogenizes Microstructure – Removes segregation in castings or forgings.
Prepares for Further Heat Treatment – Creates a stable structure before quenching or carburizing.

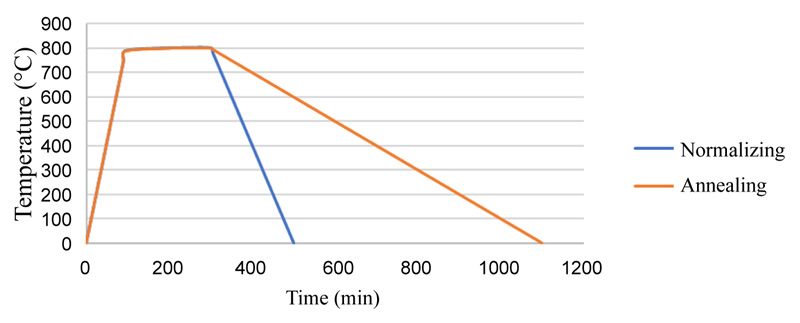

Comparison: Normalizing vs. Annealing

Feature	Annealing	Normalizing
Heating temperature	AC3 + 20–30°C (e.g., 750–830°C)	AC3 + 30–50°C (e.g., 850–950°C)
Cooling method	Slow furnace cooling (10–50°C/hour)	Air cooling (1–10°C/s)
Microstructure	Coarse pearlite + ferrite	Fine pearlite + ferrite
Hardness	Lower (150–180 HV)	Higher (160–220 HV)
Purpose	Softening, stress relief, ductility	Refinement, strength, balanced machinability

Choosing Between Annealing and Normalizing

Choose Annealing when:
- High ductility is required
- Maximum softness is needed for forming or machining
- Stress relief after cold working is the main goal
Choose Normalizing when:
- Strength and hardness are more important than softness
- Fine, uniform grain structure is desired
- Preparing castings or forgings for further heat treatment

In practice:

A steel gear blank may be normalized (for strength and fine grain) before quenching.
A sheet metal product may be annealed (for softness and easy forming).

Critical Temperatures in Normalizing

Understanding critical temperatures is essential for controlling the normalizing process:

Symbol	Temperature (Approx.)	Description
AC1	~727°C	Pearlite begins to transform into austenite
AC3	770–910°C (depends on carbon content)	Ferrite fully transforms into austenite
ACm	1100–1140°C (for high-alloy steels)	Cementite fully dissolves into austenite

Applications of Normalizing

Castings and Forgings – Removes segregation, refines microstructure
Railway Wheels – Improves toughness and wear resistance
Automotive Components – Shafts, gears, and connecting rods for balanced strength and machinability
Tool Steels – Prepares for hardening and further heat treatment
Structural Steel Products – Ensures uniform mechanical properties before fabrication

Types of Furnaces for Normalizing

Furnace Type	Features	Typical Use

Box Furnace (Batch Furnace)

Simple chamber, batch heating, flexible control

Laboratory, small-scale production

Bottom Loading Furnace

Cylindrical chamber with uniform heating, automatic lift, and safe operation

Forgings, gears, heavy-duty parts

Gas/Atmosphere-Controlled Furnace

Protective gas atmosphere, clean surface

Alloy steels, stainless steels

Conclusion

Normalizing is a powerful heat treatment method that provides a balance between strength, hardness, and machinability by refining the grain structure of steel. Compared to annealing, it produces a stronger, harder material with finer microstructure, making it ideal for preparing components for further heat treatment or heavy-duty applications.
