How to Extend the Service Life of SiC Heating Elements

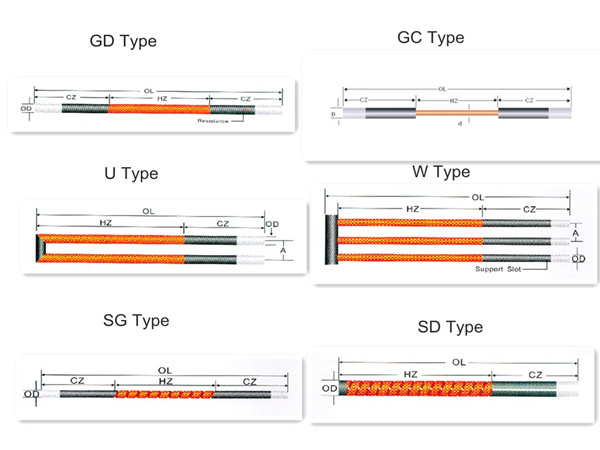

🔧 1. Understand the Natural Aging of SiC Elements

SiC heating elements operate based on electrical resistance. Over time, as they are exposed to high temperatures and oxygen, they undergo oxidation, forming a SiO₂ (silica) layer on the surface. This process leads to:

• Gradual increase in electrical resistance
• Reduced heating efficiency
• In some cases, surface embrittlement or breakage

While oxidation is inevitable, it can be controlled and slowed through correct usage.

🌡️ 2. Avoid Thermal Shock

Sudden temperature changes are a major cause of premature failure in SiC heating elements.

Best Practices:

• Use a gradual temperature ramp-up (e.g. ≤ 5°C/min below 800°C).
• Avoid sudden furnace door openings during operation.
• Let the furnace cool naturally before removing samples.

Thermal shock can cause micro-cracks that lead to eventual breakage or localized failure.

🛑 3. Operate Within the Recommended Temperature and Voltage Limits

Operating beyond the rated power or temperature significantly shortens element life.

Guidelines:

• Do not exceed the manufacturer’s maximum temperature (typically 1400–1500°C).
• Use a power supply with adjustable voltage to compensate for resistance increase over time.
• Keep surface loading within recommended W/cm² limits to avoid overheating.

🌬️ 4. Maintain Proper Furnace Atmosphere

SiC elements are most stable in oxidizing or neutral atmospheres. Certain conditions can accelerate degradation:

• Reducing atmospheres (e.g., hydrogen, carbon monoxide) can strip the protective SiO₂ layer.
• Vacuum conditions should be avoided unless using specialized protective coatings.

Solution:

Use protective tubes or choose alternative heating elements (e.g., MoSi₂) for reducing or vacuum environments.

🧼 5. Keep the Furnace Clean

Contaminants in the chamber—such as metal powders, chemical vapors, or ceramic residues—can stick to the element surface and react with it at high temperatures.

Tips:

• Regularly clean the furnace chamber and element surfaces.
• Avoid spilling materials that may volatilize and corrode the element.
• Use crucibles or trays to contain samples and reduce direct exposure.

⚙️ 6. Ensure Correct Installation and Maintenance

Improper installation can lead to loose connections, arcing, or uneven heating.

Checklist:

• Use the correct terminal lugs and insulation sleeves.
• Ensure all electrical contacts are tight and corrosion-free.
• Do not overtighten clamps—allow space for thermal expansion.

Periodic inspection can catch problems early. Look for:

• Cracks or deformation
• Terminal oxidation
• Unusual noise or color change during heating

💡 Bonus Tip: Use a Multi-Zone Temperature Controller

For large or long furnaces, uneven heating can cause temperature gradients along the element, stressing some zones more than others. A multi-zone temperature controller ensures more uniform distribution and reduces localized overload.

Conclusion

SiC heating elements are robust and efficient, but they require thoughtful operation and maintenance to perform at their best. By following the best practices outlined above, you can extend their working life, reduce downtime, and maintain stable furnace performance.

🔎 Interested in reliable, high-performance SiC heating elements?
👉 Visit our product page to learn more and request a quote »
