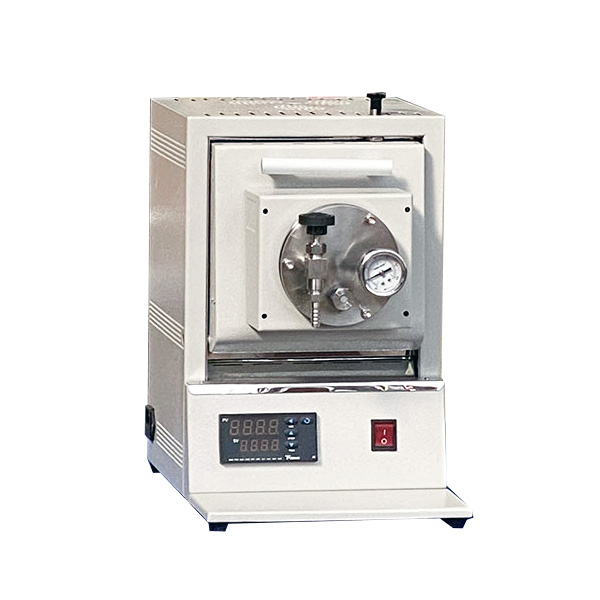

Mini Vacuum Atmosphere Furnace for Glove Box

ZYLAB 1200°C Mini Vacuum Sintering Furnace

Introduction

The ZYLAB Mini Vacuum Atmosphere Furnace is a compact laboratory furnace specifically designed for use inside glove boxes. Combining the functions of a box furnace and a vacuum atmosphere furnace, it enables high-temperature heat treatment, sintering, annealing, and materials research under vacuum, inert gas, or protective atmosphere conditions.

Featuring a large quartz reaction chamber with a high-sealing vacuum flange, the furnace provides an ideal environment for processing air-sensitive materials such as battery materials, catalysts, semiconductor components, metal powders, ceramic materials, and advanced functional materials.

Its lightweight design allows the furnace to be easily transferred into a glove box through a standard large antechamber, saving valuable laboratory space while maintaining excellent thermal performance.

Key Features

Designed for Glove Box Integration

• Compact and lightweight construction
• Easily fits through standard glove box transfer chambers
• Occupies minimal laboratory space
• Ideal for oxygen- and moisture-sensitive experiments

Vacuum & Atmosphere Processing

The furnace can operate under:

• Vacuum
• Argon
• Nitrogen
• Protective gas atmosphere
• Mixed process gases

The high-quality quartz reaction chamber combined with a vacuum sealing flange ensures reliable atmosphere isolation during thermal processing.

Dual Function Design

Unlike conventional mini furnaces, this system functions as both:

• Laboratory box furnace for larger samples
• Vacuum atmosphere furnace for controlled-environment sintering

This significantly expands application flexibility.

Excellent Thermal Efficiency

High-performance refractory insulation minimizes heat loss and reduces power consumption while maintaining excellent temperature stability.

Precise Temperature Control

The intelligent PID controller provides accurate heating for demanding laboratory applications.

Technical specifications of Mini Vacuum Atmosphere Furnace:

Model	VAH1200-80
Maximum Temperature	1200°C (<1 hour)
Continuous Working Temperature	≤800°C
Heating Rate	Up to 20°C/min
Temperature Accuracy	±1°C
Power Supply	AC220V
Power	1 kW
Vacuum Level	5–10 Pa (Molecular pump optional for higher vacuum)
Furnace Chamber Size	100 × 100 × 100 mm
Quartz Reaction Chamber Volume	370 ml

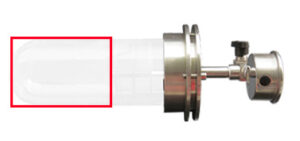

Quartz Chamber Size		Ø74 × 100 mm
Overall Dimensions	255 × 390 × 390 mm (W × H × D)
Furnace Dimensions (without chamber)	255 × 390 × 300 mm

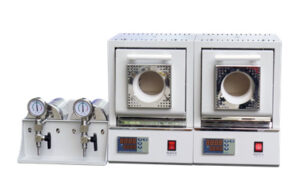

Reaction Chamber Support Stand
Control System	PID fuzzy logic temperature control Bright digital display 30 programmable heating segments Automatic temperature ramping Over-temperature protection Thermocouple failure alarm Leakage protection

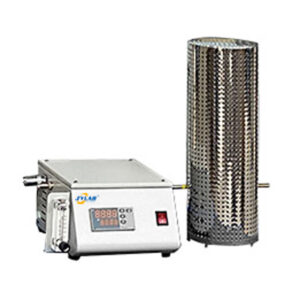

Optional Weak Corrosive Gas Preheater		Full 316L stainless steel construction Suitable for inert and weak corrosive gases Maximum temperature up to 600°C Temperature accuracy of ±1°C Improves gas temperature stability before entering the reaction chamber Ideal for specialized atmosphere processing
Net Weight	Approximately 12 kg
Warranty & Support	18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support.

Applications:

• Battery material sintering
• Solid-state electrolyte research
• Lithium battery material processing
• Ceramic sintering
• Powder metallurgy
• Catalyst calcination
• Semiconductor material annealing
• Nanomaterial heat treatment
• Metal heat treatment
• Functional material research
• University laboratories
• Research institutes
• R&D laboratories
