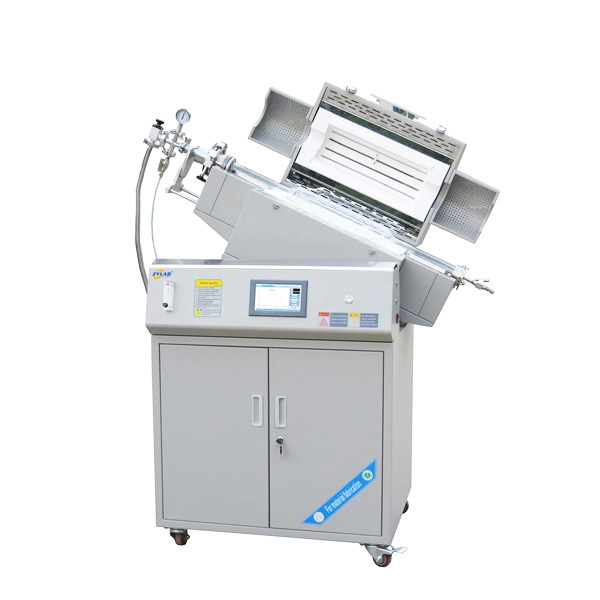

Laboratory 1200°C Rotary Rocking Tube Furnace

The Laboratory 1200°C Rotary Rocking Tube Furnace is a highly automated thermal processing system designed for the heat treatment, calcination, sintering, reduction, and reaction of powder materials under controlled temperature and atmosphere conditions.

Combining continuous tube rotation, rocking motion, and adjustable furnace tilting, this rotary tube furnace promotes uniform movement of powder materials inside the reaction tube. During operation, the materials undergo both radial and axial tumbling, improving heat transfer and gas-solid contact while helping to achieve more uniform thermal treatment.

Description
SPECIFICATIONS

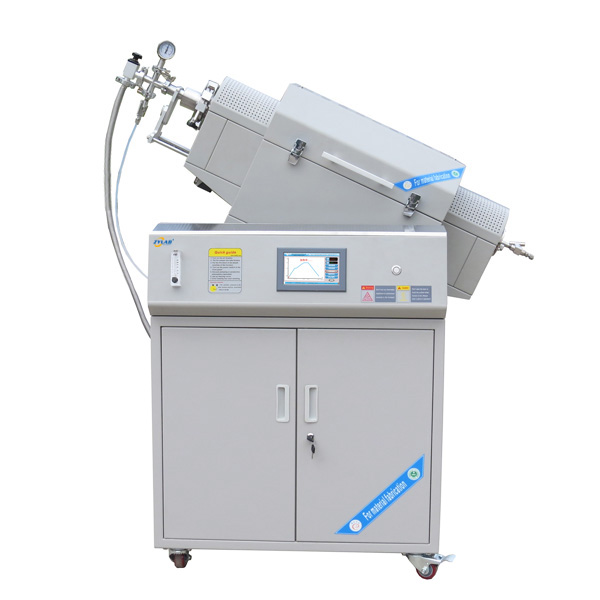

Automated Rotary and Tilting Tube Furnace for Powder Heat Treatment

Introduction:

The system is widely used for the preparation and processing of lithium-ion battery cathode and anode materials, rare earth materials, chemical catalysts, magnetic materials, metal powders, and hydrogen reduction processes.

Equipped with a high-purity quartz tube, integrated lifting scraper structure, dynamic sealing system, and automatic touchscreen control, this laboratory rotary rocking tube furnace can be configured for operation under vacuum, inert gas, reducing gas, or other controlled atmospheres.

Features:

1. Rotary and Rocking Motion for Uniform Heat Treatment

The reaction tube continuously rotates and oscillates during operation, causing powder materials to tumble in both radial and axial directions. This movement helps improve material mixing, temperature uniformity, and contact between the powder and process gas.

Compared with conventional static sintering, the rotary rocking design can help reduce problems associated with uneven heating, localized overheating, over-sintering, or incomplete sintering.

2. Adjustable Tilting Angle

The furnace body can be tilted from -5° to 30°, allowing users to adjust the material movement and residence behavior inside the tube.

The tilting design also makes material loading and unloading easier, improving operational convenience for laboratory and pilot-scale powder processing.

3. High-Purity Quartz Reaction Tube

The furnace is equipped with a high-purity quartz tube suitable for high-temperature laboratory applications. An embedded lifting scraper structure helps continuously lift and turn the powder during tube rotation, supporting more uniform exposure to heat and process gases.

4. Excellent Thermal Insulation and Energy Efficiency

The furnace chamber uses high-purity Al₂O₃ ceramic fiber insulation, providing excellent thermal insulation performance and reduced heat loss.

This lightweight insulation structure helps improve heating efficiency and reduce overall power consumption.

5. Vacuum and Controlled Atmosphere Capability

An advanced dynamic sealing system allows the rotary tube furnace to operate under controlled process conditions, including:

Vacuum
Air
Nitrogen
Argon
Hydrogen or reducing atmospheres
Other customized process gases

This makes the furnace suitable for a wide range of powder sintering, calcination, reduction, and atmosphere heat treatment applications.

6. Fully Automatic Control System

The system features a fully automatic control system with a 7-inch touchscreen interface.

Users can monitor and control important operating parameters in real time, including:

Furnace temperature
Heating program
Tube rotation
Rocking operation
Furnace tilting angle
Process status
Gas and vacuum system status

The programmable control system provides improved repeatability and convenience for laboratory research and pilot-scale production.

Typical Applications:

The 1200°C rotary rocking tube furnace is suitable for a wide range of powder material research and thermal processing applications, including:

Lithium-ion battery cathode material synthesis
Lithium-ion battery anode material processing
Rare earth material heat treatment
Chemical catalyst preparation
Magnetic material processing
Metal powder heat treatment
Powder hydrogen reduction
Powder calcination
Controlled atmosphere sintering
Gas-solid reaction research
Material roasting and thermal decomposition
Laboratory and pilot-scale powder processing

Technical Parameters:

Model	RT1200-100
Power Supply	AC 220 V, 4 kW
Maximum Temperature	1200°C (≤1 hour)
Continuous Working Temperature	1100°C
Heating Rate	≤20°C/min
Heating Length	440 mm (single temperature zone) / 200 mm × 2 (dual temperature zones with independent control) / 200 mm × 3 (three temperature zones with independent control)
Tube Size		Ø100 × 1000 mm
Temperature Accuracy	±1°C
Heating Element		Molybdenum-Doped Fe-Cr-Al Alloy High-Temperature Heating Wire
Intelligent Touch Screen Control System		1.Capable of storing 15 temperature profiles, avoiding the inconvenience of repetitive setup for different experimental processes. 2.The experimental process is more intuitive, and the operation is more convenient.3.The embedded operating system features a bilingual graphical interface (English and Chinese), a 7-inch full-color touchscreen input, an intelligent human-machine dialogue mode, and non-linear sample temperature correction. 4.Equipped with functions such as over-temperature alarm, thermocouple disconnection alert, and leakage protection.
Sealing System	Dynamic Sealing System	Vacuum Level: ≤10 Pa (with mechanical vacuum pump)
Pressure Measurement		Mechanical pressure gauge with shock-absorbing oil
Gas Control		Float flowmeter
Dimension	1300 (L) × 700 (W) × 1500 (H) mm
Weight	Approx. 180 kg
Warranty	One-year warranty, lifetime support (excluding consumable parts such as furnace tubes, O-rings )

Optional Configurations:

The Laboratory Rotary Rocking Tube Furnace can be customized with different auxiliary systems according to specific process requirements.

Optional configurations include:

Preheater for Mildly Corrosive Process Gases
Preheats mildly corrosive process gases before they enter the reaction tube, helping improve process stability and gas treatment efficiency.
Material Collection System
A dedicated collection device for convenient recovery and collection of processed powder materials after heat treatment.
Multi-Channel Mass Flow Controller (MFC) System
Provides precise control and monitoring of multiple process gas flow rates, allowing different gases to be mixed and supplied according to the experimental requirements.
Vacuum System
An integrated vacuum system for applications requiring vacuum heat treatment or low-pressure processing. It can be used to evacuate the reaction tube and maintain the required vacuum conditions.
Hydrogen Reduction System
A dedicated gas supply and control system for hydrogen reduction applications, suitable for the reduction and heat treatment of metal powders, battery materials, and other reducible materials under a controlled hydrogen atmosphere.
