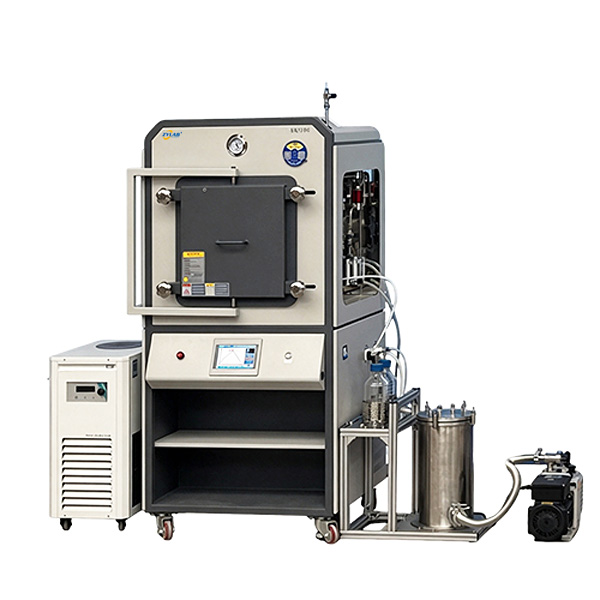

1700°C Laboratory Vacuum Debinding Furnace with Condensate Trap

ZYLAB High-Temperature Vacuum Debinding Furnace

Introduction

The ZYLAB Laboratory Vacuum Debinding Furnace with Condensate Trap is designed for high-temperature vacuum debinding and thermal processing of advanced materials, including metal injection molding (MIM) parts, powder metallurgy components, ceramic green bodies, and other materials requiring controlled binder removal.

The furnace features a sealed processing chamber, programmable temperature control, and a condensate collection system designed to capture condensable vapors and decomposition byproducts generated during debinding. By collecting condensable substances before they reach the vacuum pump, the system helps reduce pump oil contamination and maintenance requirements.

With a maximum temperature of 1700°C, a recommended heating rate of up to 10°C/min, and a programmable control system, the supports controlled thermal profiles for laboratory-scale materials research and process development. Optional process configurations can be discussed for applications requiring additional atmosphere control or combined debinding and sintering.

Key Features

High-Temperature Vacuum Debinding

Designed for controlled binder removal under vacuum or compatible inert-gas atmospheres. The enclosed processing chamber helps limit exposure to air and reduce oxidation risks for oxidation-sensitive materials.

Integrated Condensate Trap for Vacuum Pump Protection

The condensate collection vessel captures condensable vapors, binder residues, and other byproducts before they enter the vacuum pump. This helps reduce pump oil contamination, deposits in vacuum lines, and maintenance requirements.

Programmable Multi-Stage Temperature Control

Multiple thermal process programs can be configured and stored. Controlled heating stages help accommodate binder removal at different temperatures and reduce the risk of bubbling, cracking, or deformation caused by unsuitable heating profiles.

Vacuum and Inert-Gas Process Control

Integrated pressure monitoring and two gas flowmeters support process monitoring and gas-flow adjustment. The system can be configured for vacuum and compatible protective-gas processing according to application requirements.

Process Data Recording and Remote Monitoring

Programmable schedules, process data storage, temperature correction, and remote monitoring help improve workflow efficiency, support repeatable experiments, and simplify process tracking.

Applications of Metal-Ceramic Debinding Furnace

• Metal Injection Molding (MIM): Binder removal from molded metal green parts.

• Powder Metallurgy: Debinding of powder-based components before subsequent processing.

• Advanced Ceramics: Controlled binder removal from ceramic green bodies.

• Materials Science Research: Development and optimization of thermal processing profiles for advanced materials.

• High-Temperature Processing: Applications requiring temperatures up to 1700°C, subject to material compatibility and process requirements.

Technical Specifications

Condensate Trap and Exhaust Treatment System

The integrated condensate trap is designed to collect condensable substances generated during vacuum debinding and other compatible thermal processes before they reach the vacuum pump.

Key functions

• Condensable Vapor Collection: Captures vapors that condense as they cool, including suitable binder-derived vapors, organic residues, and moisture.

• Vacuum Pump Protection: Helps reduce condensable contamination of pump oil and internal pump components, supporting more reliable vacuum operation.

• Particulate and Deposit Management: Provides a collection point for some entrained deposits and residues. Additional filtration may be needed for fine powder applications.

• Exhaust Pretreatment: Works with the gas washing bottles to support preliminary treatment of compatible process exhaust before discharge to a suitable exhaust-handling system.

Programmable Control System

The control system supports programmable thermal processing, experiment monitoring, and process data management.

Programmable Thermal Profiles

• Multiple process programs can be preset and stored.

• Heating rates, temperature setpoints, and holding stages can be configured according to the selected process.

• Dynamic curve displays allow operators to monitor the programmed thermal profile.

• Controlled low-temperature stages can help reduce the risk of defects during binder removal.

Temperature Correction

The system supports nonlinear temperature correction to compensate for differences between the controller’s measured temperature and the temperature experienced by the sample.

This function can help improve temperature consistency for a defined furnace configuration and sample position. Actual sample temperature should be validated under the intended operating conditions.

Process Data Storage and Export

• Records process data during operation.

• Supports electronic data export for experiment documentation and analysis.

• Helps researchers compare thermal profiles and improve process repeatability.

Scheduled Operation

The controller supports scheduled process starts, allowing users to arrange experiments in advance and improve laboratory equipment utilization.

Remote Monitoring and Control

The system supports remote access through compatible computers or mobile devices, allowing users to monitor operating parameters such as temperature, pressure, and heating rate. Remote adjustment and start/pause functions are subject to the installed control configuration and applicable safety interlocks.

Pressure Monitoring and Gas Flow Control

Mechanical Pressure Gauge

The mechanical pressure gauge provides visual pressure monitoring. Its enclosed housing helps protect internal components from environmental exposure and contamination.

Dual Float Flowmeters

Two integrated float flowmeters provide adjustable gas-flow ranges of 0.3–3 L/min and 1.5–15 L/min, supporting a range of inert-gas flow requirements. The gas circuit is leak-tested before shipment.
