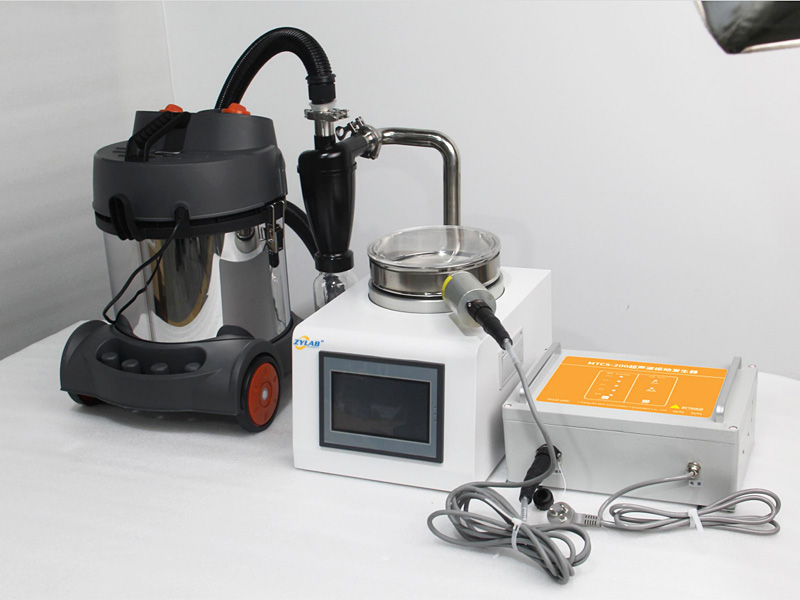

ZYLAB Air Jet Sieve Solution
Introduction:

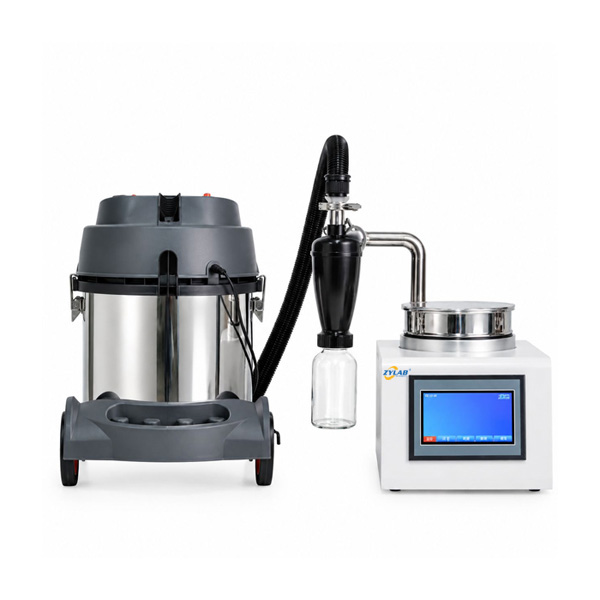

The ZYLAB Laboratory Air Jet Sieving Machine is designed for particle size analysis of fine powders, particularly low-density particles that tend to agglomerate during conventional sieving.
Featuring a specially treated sieve mesh and adjustable nozzle speed, it provides flexible sieving conditions with a typical sieving time of 2–3 minutes.
The standard configuration includes a manually adjustable vacuum unit, a collection bottle and an electronic balance, with optional ultrasonic assistance and data management functions available for different laboratory testing requirements.
Looking for complementary powder processing equipment? Explore our Lab Scale Jet Mill for fine powder grinding and our 3D Shaker Mixer for efficient powder mixing.
Key Features:
1. Efficient Fine Powder Sieving: Designed for fine powder particle size analysis, with a sieving range of 5–5,000 μm.
2. Non-metallic treated sieve mesh.
3. Adjustable nozzle speed and negative pressure allow operators to optimize airflow according to sample properties and sieve aperture.
4. Supplied with a manually adjustable vacuum unit, a collection bottle and an electronic balance.
5. Optional Functions: Ultrasonic assistance, automatic sieve identification, data reporting and audit trail functions are available to support different laboratory workflows.
Applications:
The laboratory air jet sieve is suitable for fine powder particle size analysis in research, development and quality control.
-
Materials Science: Fine powders and advanced functional materials.
-
Powder Metallurgy: Metal powders and fine inorganic particles.
-
Battery Materials Research: Powder characterization for battery material development, subject to material compatibility and system containment requirements.
-
Ceramics: Fine ceramic powders and raw materials.
-
Chemical Materials: Dry, free-flowing or easily agglomerated particulate materials.
-
University and Industrial Laboratories: Particle size testing, material characterization and laboratory quality control.
Technical Parameters of Air-Jet Sieving Machine:
| Model | A-200 |
| Applicable Particle Size | 10–100 μm |
| Overall Sieving Range | 5–5,000 μm (Auxiliary equipment required for particles below 30 μm) |
| Maximum Sample Load | 100 g |
| Standard Sieving Levels | 1 |
| Maximum Sieving Levels | 2 (with optional accessories) |
| Compatible Test Sieve Diameters | 203 mm, 200 mm, 150 mm, 75 mm |
| Nozzle Clearance | 2 mm |
| Working Negative Pressure | 0 to −10 kPa |
| Airflow Rate | 30–120 m³/h |
| Rotation Speed | 5–30 rpm |
| Typical Sieving Time | 2–3 minutes |
| Sieving Time Setting | 1 second to 99,999 minutes |
| Sieving Repeatability Error | Less than 1% |
| Weighing Range | 0.01–600 g |
| Weighing Resolution | 0.01 g |
| Pressure Sensing Response Time | 0.01 seconds |
| Air Inlet | Integrated air filtration system |
| Communication Interface | RS232 (for electronic balance communication) |
| Power Supply | 220 V AC, 50 Hz, 1 A |
| Motor Power | 25 W |
| Operating Temperature | −10°C to 50°C |
| Relative Humidity | 0–90% RH |
| Dimensions (W × D × H) | 300 × 400 × 225 mm |
| Weight | 20 kg |
Available Configurations:
Economy Configuration
-
Main unit with built-in printer
-
Electronic balance
-
Collection bottle
- Manually adjustable vacuum unit
Expanded Configuration
Includes the economy configuration, plus:
-
Ultrasonic assistance system
-
Analytical test sieve
- Custom sieve cover
Advanced Configuration
Includes the expanded configuration, plus:
-
Automatic sieve identification
-
Data extraction and reporting
-
Audit trail functionality
-
Expanded historical data storage
-
Optional computer
