I-Shaped MoSi₂ Heating Element for High-Temperature Furnaces

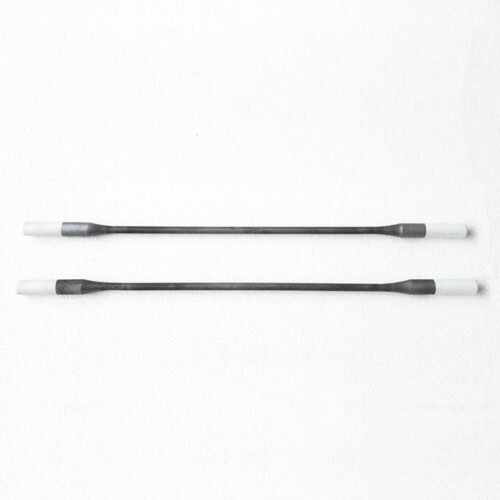

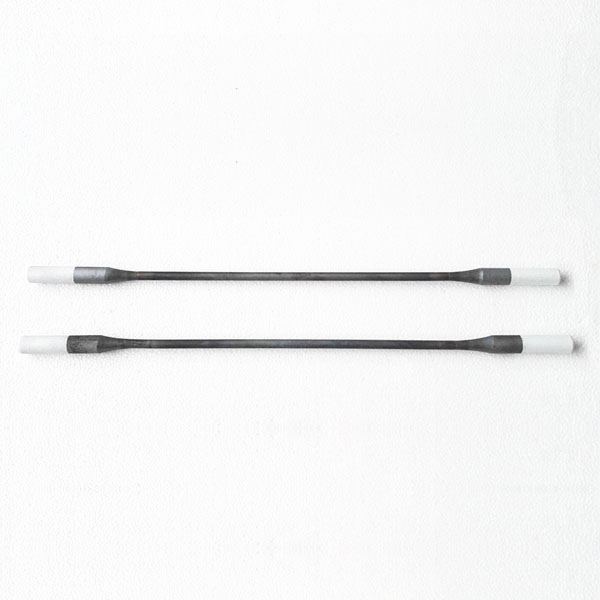

ZYLAB I-Shaped MoSi₂ Heating Element

Introduction

The I-Shaped MoSi₂ Heating Element from ZYLAB is a high-performance, single-rod heating solution designed for use in electric furnaces operating up to 1800°C. Made from molybdenum disilicide (MoSi₂), this element provides excellent oxidation resistance and stable electrical properties, making it ideal for both laboratory and industrial heat treatment applications.

With its simple, straight design, the I-shaped element is particularly suitable for vertical or custom furnace layouts requiring compact, direct heating.

Available Models & Customization

• Model: I-shaped MoSi₂ Heating Element

• Grades: 1700 / 1800

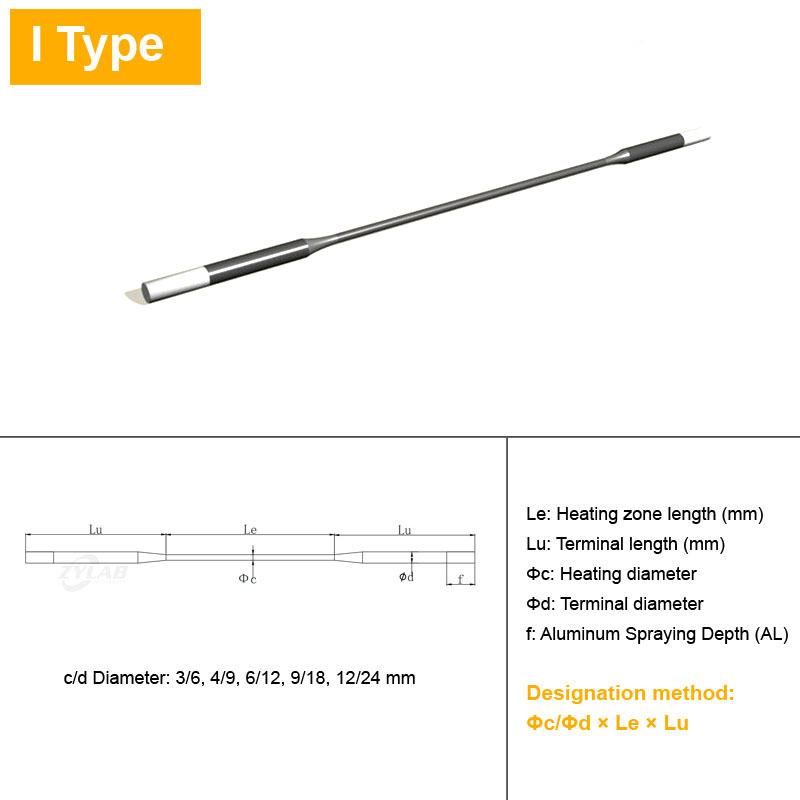

• Standard Diameters: 3/6, 4/9, 6/12, 9/18, 12/24 mm

• Voltage: 220V–380V (customizable)

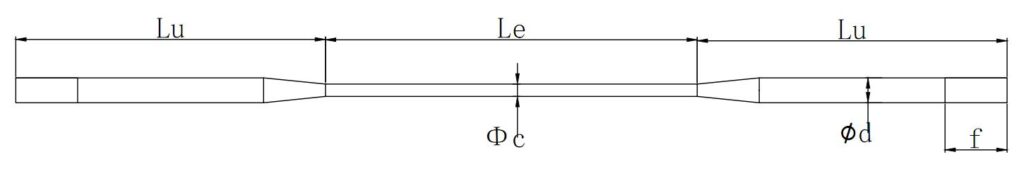

• Custom Specs Example: φc/φd = 6/12 mm, Le = 300 mm, Lu = 350 mm, Grade = 1700

Need help with specifications?

Share your parameters and we’ll deliver a tailor-made solution.

Contact us for free consultation or a quote!

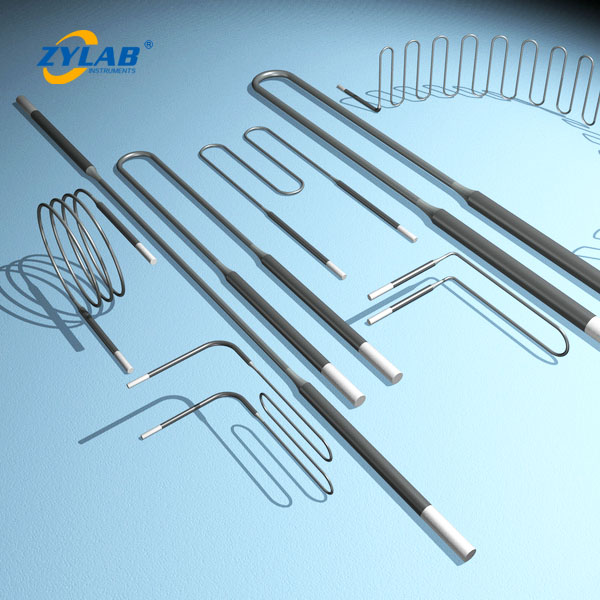

ZYLAB also offers a full range of accessories for MoSi₂ heating elements to ensure safe and efficient installation.

Applications of I-Shaped MoSi₂ Heating Element

• Laboratory High-Temperature Furnaces
  Used in material analysis, thermal treatment, and ceramic sintering in research labs and universities.

• Vertical Tube Furnaces
  Perfect for vertically mounted or space-constrained heating chambers requiring single-ended heating.

• Precision Heat Treatment of Advanced Materials
  Enables stable and uniform heating in sintering, annealing, and calcining processes for ceramics, metals, and composites.

• Glass and Ceramic Processing
  Provides direct and clean heating in controlled atmosphere conditions up to 1800°C.

• Semiconductor and Electronic Materials
  Used in the thermal processing of wafers, substrates, and specialty powders.

• Industrial Furnaces and OEM Systems
  Ideal for integration into custom furnace designs requiring high-efficiency and high-durability elements.

Features & Benefits

• Straight Single-Rod Design
  Ideal for limited-space installations or vertically mounted furnace chambers.

• High Temperature Resistance
  Maximum operating temperature up to 1800°C in oxidizing atmospheres.

• Excellent Oxidation Performance
  Forms a protective SiO₂ layer in air, significantly extending service life.

• Stable Electrical Conductivity
  Consistent performance across a wide temperature range with low resistance drift.

• Customizable Dimensions
  Tailored length, diameter, and resistance available to match your furnace specifications.

• Fast Heating Response
  Low thermal mass ensures quick ramp-up and temperature stability.

Physical & Chemical Properties

Oxidation Resistance:
At high temperatures, a dense quartz (SiO₂) layer forms on the surface, preventing further oxidation. If the temperature exceeds 1700°C, the SiO₂ layer melts (m.p. ≈1710°C), but reforms once cooled, maintaining protection.

Avoid prolonged use between 400–700°C, as severe low-temperature oxidation may cause element degradation.

Why Choose ZYLAB?

• Expert in high-temperature furnaces and components

• Global supplier to research and industrial users

• Full customization service with fast lead times

• Reliable technical support and after-sales service
