High Temperature Tabletop Furnace | 1700°C Lab Use

ZYLAB 1700°C High Temperature Tabletop Furnace

Introduction

ZYLAB High Temperature Tabletop Furnace is a compact and efficient solution for high-temperature thermal processing in laboratory settings. Designed to reach a maximum temperature of 1700°C, it is equipped with an advanced PID temperature controller that enables precise programming of multi-step heating profiles, including ramping and holding stages.

This tabletop furnace is available in three standard chamber sizes, and custom chamber dimensions can be provided to meet specific application needs. Whether you’re performing ceramic sintering, metal annealing, or materials research, the ZYLAB furnace ensures reliable, consistent performance while conserving valuable laboratory space.

Key Features

• Maximum Temperature: 1700°C
  Ideal for sintering technical ceramics, melting small samples, and conducting advanced heat treatment research.

• Compact Tabletop Design
  Easily fits on laboratory workbenches while maintaining excellent thermal performance and safety.

• 7-Inch Color Touchscreen Controller
  Intuitive interface with real-time temperature display, program memory, and precise PID control.

• 30-Segment Programmable Logic
  Enables automatic execution of custom heating profiles for consistent and repeatable results.

• Durable Ceramic Fiber Chamber
  Offers low thermal conductivity, fast heat-up rates, and improved energy efficiency.

• MoSi₂ Heating Elements
  High-purity molybdenum disilicide rods provide stable heating, long service life, and excellent oxidation resistance.

• Double-Layer Steel Casing with Cooling Fan
  Keeps the exterior surface temperature below 50°C to ensure safe operation in lab environments.

• Top-Mounted Exhaust Chimney
  Efficient removal of gases and fumes generated during heat treatment processes, improving workplace safety and sample integrity.

• Customizable Chamber Size
  Standard sizes are available, and the furnace chamber can be tailored to meet specific laboratory or R&D needs.

Applications of High Temperature Tabletop Furnace

• Ceramic & Refractory Sintering
  Ideal for firing advanced ceramic materials such as alumina, zirconia, and silicon nitride.

• Battery Material Research
  Heat treatment of solid-state electrolyte powders, electrodes, and related compounds.

• Metal Melting & Thermal Analysis
  Suited for melting small metal samples and testing metallurgical behavior at high temperatures.

• Glass & Enamel Testing
  Precision heating for small glasswork and specialty coatings.

• Material Science & University Labs
  Widely used in research institutions and R&D facilities for precise thermal processing.

Technical Specifications of High Temperature Tabletop Furnace

Model	M1700-12	M1700-16	M1700-22
Working voltage	AC 208 – 240V, 50/60 Hz (according to requirement)
Max. Power	1.8KW	4KW	5KW
Maximum Temperature	1700°C (for ≤1 hour)
Continuous Working Temp	1650°C (continuous)
Max Heating Rate	≤20°C/min

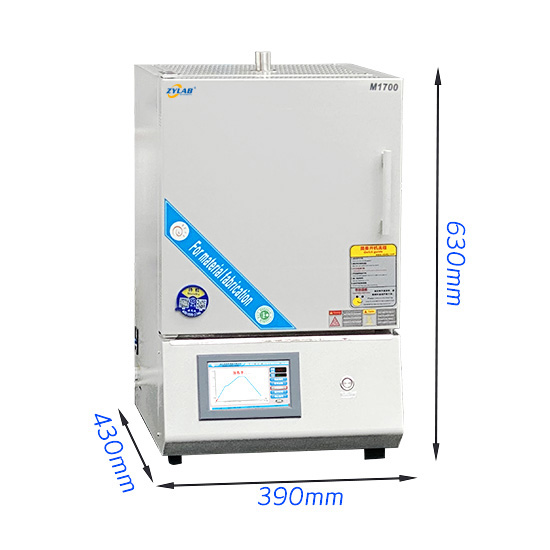

Chamber Size	120 × 120 × 120 mm	160 × 160 × 160 mm	220 × 220 × 260 mm
Temperature Controller		Color touchscreen with intuitive GUI (English/Chinese switchable). Embedded OS with smart HMI. Non-linear temperature calibration. Stores up to 15 programs, 30 segments per program. Safety features: over-temp alarm, thermocouple break alert, leakage protection.
Temperature Accuracy	±1°C
Heating Element		High-purity molybdenum disilicide (MoSi₂) rods
Net Weight	80 kg	120 kg	180 kg
Safety Notice	Do not open the chamber if internal temp ≥300°C to avoid injury. Small cracks in chamber due to use are normal and do not affect performance.
Warranty & Support	18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support.

Advantages of ZYLAB Furnaces

• Flexible Customization – Designed to meet diverse laboratory demands

• Widely Used in Research and Industry – Reliable performance in materials labs, universities, and production environments

• Professional Support – Dedicated technical service and documentation

• Efficient Logistics – Timely delivery and global shipment options
