1200°C Tube Furnaces – Precision Heating for Laboratory & Industrial Application

ZYLAB 1200°C Tube Furnaces

Introduction

ZYLAB 1200°C Tube Furnaces are versatile and reliable high-temperature systems designed for heat treatment, sintering, material research, and atmosphere processing. Featuring advanced PID temperature control and customizable configurations, they offer excellent temperature uniformity and stable thermal performance for scientific laboratories, universities, and industrial R&D environments.

Key Features

• High Purity Quartz Tube: Designed for use up to 1200°C, with continuous operation from room temperature to 1100°C.

• 7-Inch Color Touchscreen Interface: Intuitive LCD user interface for easy monitoring and control.

• 30-Segment Programmable Control: Enables precise temperature ramping and holding profiles.

• 15 Sintering Programs Preset: Quickly switch between common sintering curves for improved efficiency.

• Vacuum-Formed Alumina Fiber Insulation: Eco-friendly, energy-efficient chamber with excellent temperature uniformity and fast heat-up rates.

• Corrosion-Resistant Heating Elements: High-grade alloy wires and protective liner resist acid/base attack and minimize contamination.

• Double-Layer Steel Shell with Fan Cooling: Keeps the external surface below 50°C to ensure user safety.

• Ring-Shaped Heating with Open Structure: Facilitates uniform heating and allows visual monitoring, ideal for fast sintering of small samples.

• Gas Flow Meter Included: Supports precise and convenient atmosphere sintering under inert or reactive gases.

• Multi-Function Flange Design: Includes test ports for inserting electrodes or temperature/gas sensors.

• Modular Temperature Zones: Configurable with one or more independently controlled zones for flexible thermal processing.

Typical Applications of 1200°C Tube Furnaces

• Materials Synthesis: Ideal for synthesizing nanomaterials, ceramic compounds, and powder metallurgy products under controlled temperature and atmosphere.

• Thermal Processing: Supports annealing, calcination, and sintering of a wide range of materials, including metals, ceramics, and composites.

• Controlled Atmosphere Experiments: Enables thermal processing under inert gas, reducing gas, or vacuum environments for sensitive or reactive materials.

• Semiconductor Fabrication: Suitable for wafer annealing, diffusion, oxidation, and single crystal growth processes.

• Thermal Decomposition and Pyrolysis: Applied in decomposition of materials and gas–solid reactions for catalyst or advanced material production.

• Chemical Vapor Deposition (CVD): Used for thin film deposition and surface coating applications in electronics and materials engineering.

• Catalyst Preparation and Testing: Facilitates the activation, regeneration, and performance evaluation of various catalytic materials.

• Scientific Research and Education: Widely used in R&D in materials science, chemistry, and physics for fundamental studies and experiment-based teaching.

Technical Specifications of 1200°C Tube Furnaces

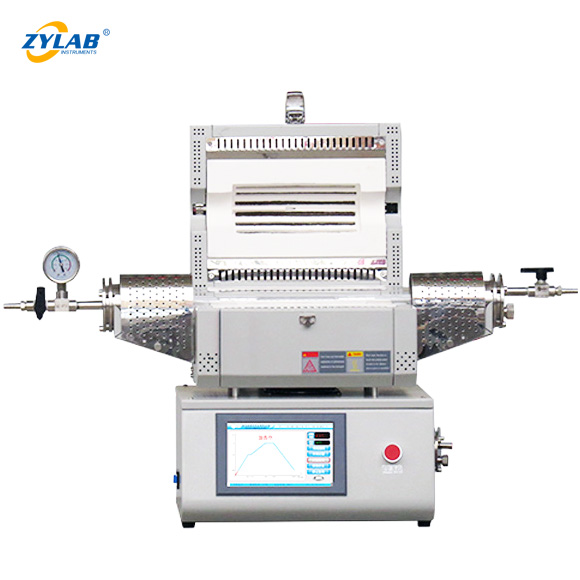

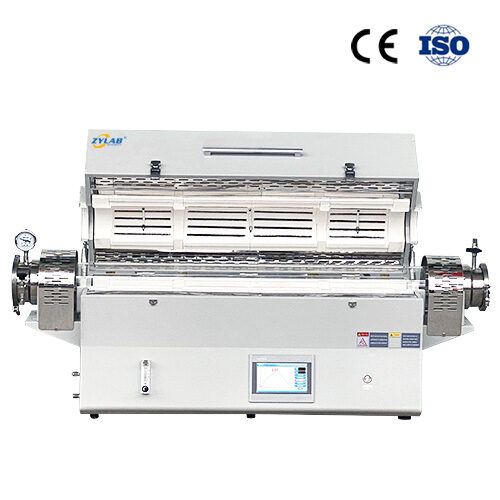

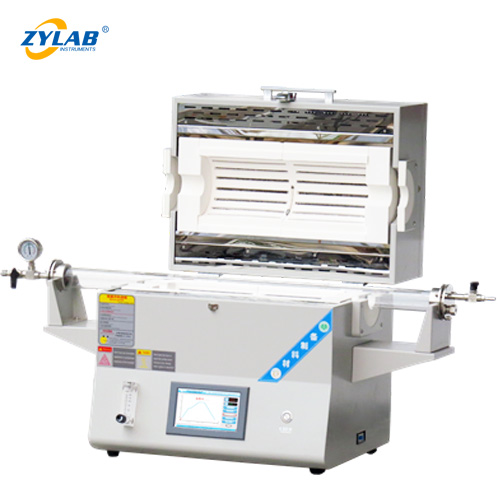

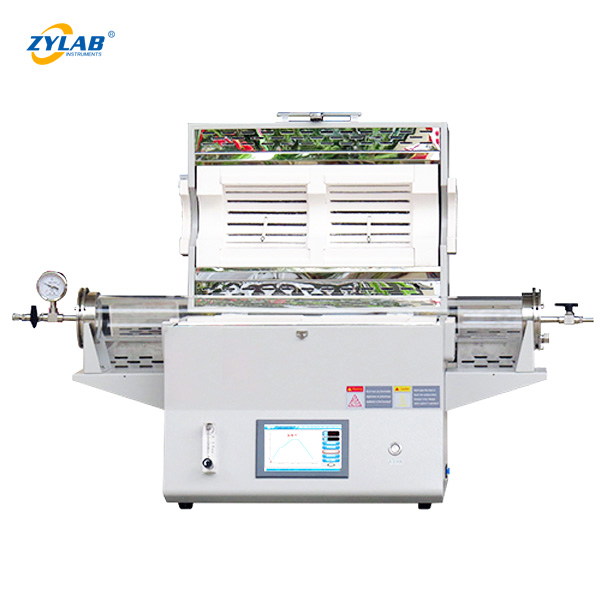

Name	1200°C Mini Tube Furnace	1200°C Single Zone Tube Furnace	1200°C Double Zone Tube Furnace	1200°C Three Zone Tube Furnace
Chamber Model	Open	Open	Open	Open
Heating Zone	Single	Single	Dual(2 zones)	Three(3 zones)
Working voltage	AC208-240V 50/60HZ	AC208-240V 50/60HZ	AC208-240V 50/60HZ	AC380V 50/60HZ
Max. Power	1.2KW	4KW	2KW+2KW	2KW+4KW+2KW
Maximum Temperature	1200°C (for ≤1 hour)	1200°C (for ≤1 hour)	1200°C (for ≤1 hour)	1200°C (for ≤1 hour)
Continuous Working Temp	1150°C (continuous)	1150°C (continuous)	1150°C (continuous)	1150°C (continuous)
Max Heating Rate	≤20°C/min	≤20°C/min	≤20°C/min	≤20°C/min
Length of Heating Zone	200mm	440mm	200+200mm Optional: 300+300mm	200+400+200mm
Tube Material	High purity quartz	High purity quartz	High purity quartz	High purity quartz
Tube Size	Φ25×600mm Φ50×600mm	Φ50×1000mm Φ60×1000mm Φ80×1000mm Φ100×1000mm	Φ50×1000mm Φ60×1000mm Φ80×1000mm Φ100×1000mm	Φ50×1400mm Φ60×1400mm Φ80×1400mm Φ100×1400mm
Temperature Accuracy	±1°C	±1°C	±1°C	±1°C
Net Weight	23 kg	60 kg	60 kg	90 kg

Looking for high-temperature options? Explore our 1500°C and 1700°C models on the [Tube Furnaces] page.

Customization & Accessories

ZYLAB offers a wide range of customizable options and accessories to meet the specific requirements of your thermal processing applications:

• Rotary or Sliding Tube Mechanism – For uniform heating and mixing of samples

• Vacuum and Gas Mixing Systems – Enable controlled atmosphere processing under vacuum or inert/reducing gases

• Rapid Cooling Module – Accelerates cooling to shorten process cycles

• Multi-Zone Temperature Control – Each zone can be independently configured for temperature gradients

• Gas Safety Protection Device – Ensures safe operation during atmosphere processing with inert or flammable gases

• Laboratory Water Vapor Generator – For experiments requiring controlled humidity or steam atmosphere

• Efficient Inert Gas Preheater – Preheats gases before entering the furnace to maintain temperature stability

• Chemical Vapor Deposition (CVD) System – Fully integrated system for thin film deposition and surface coating applications

Advantages of ZYLAB Furnaces

• Flexible Customization – Designed to meet diverse laboratory demands

• Widely Used in Research and Industry – Reliable performance in materials labs, universities, and production environments

• Professional Support – Dedicated technical service and documentation

• Efficient Logistics – Timely delivery and global shipment options
