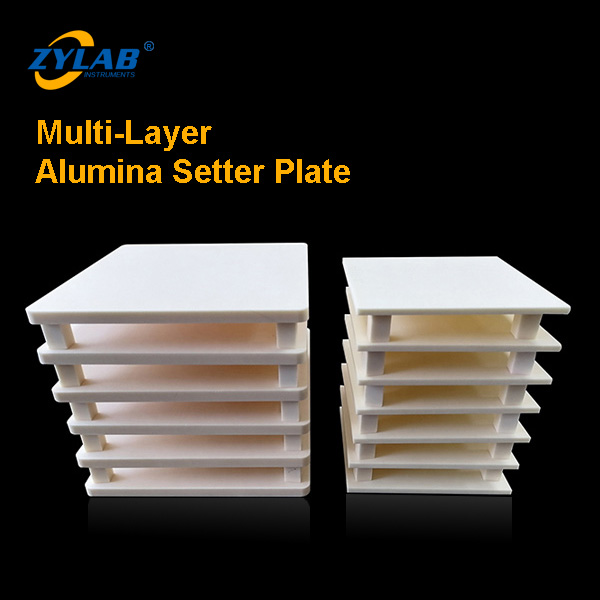

ZYLAB Multi-Layer Alumina Setter Plate System
Introduction:

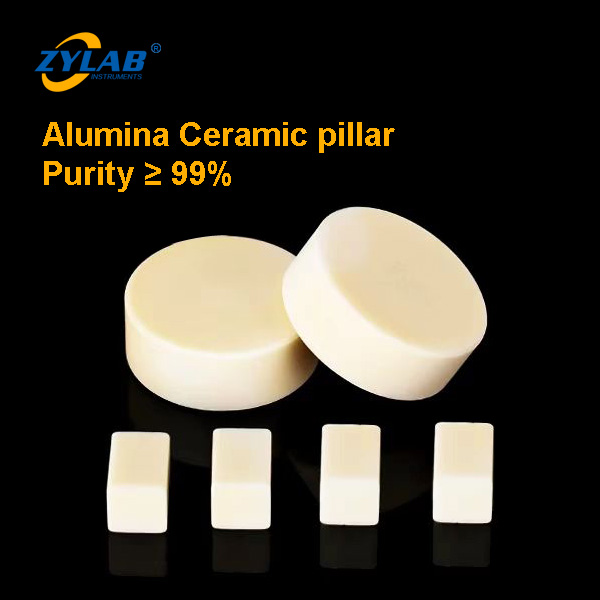

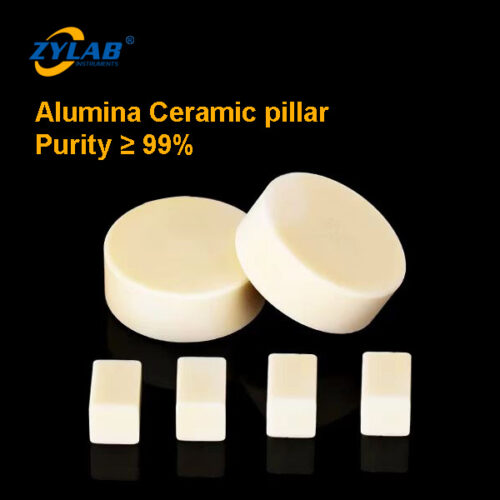

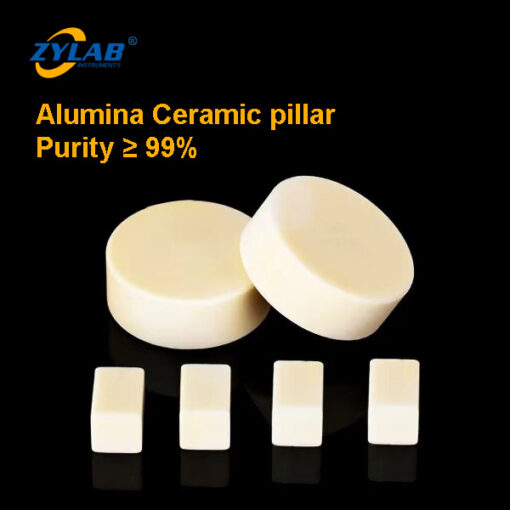

ZYLAB’s multi-layer alumina setter plate system is sp ecifically designed for efficient and contamination-free sample sintering in high-temperature laboratory and industrial furnaces. Made from ≥99% high-purity alumina, this stackable plate and pillar system allows users to process multiple samples simultaneously, maximizing furnace chamber space and improving productivity during thermal treatments up to 1700°C.
Please share your Laboratory furnace specifications（inner chamber dimensions (L×W×H) and temperature requirements）, and we will provide a tailor-made solution for you.
Contact us for free consultation or a quote!
Key Features:
-
High Purity (≥99% Al₂O₃): Ensures chemical stability and ultra-clean sintering environments.
-
Multi-Layer Design: Stackable plates and support columns allow 2–10 sample levels within the same firing cycle.
-
Customizable Size & Structure: Available in various dimensions and can be tailored to your furnace chamber size.
-
High Flatness & Mechanical Strength: Maintains structural integrity and dimensional accuracy even at high temperatures.
-
Contamination Prevention: Ideal for sintering sensitive materials like ceramics, metals, and 3D-printed components.
-
Durable & Reusable: Designed for long service life across multiple firings.
Applications of Multi-Layer Alumina Setter Plate system:
-
Laboratory sample sintering
-
Thermal post-processing for additive manufacturing
-
Powder metallurgy
-
Ceramic substrate firing
-
High-purity material testing
-
Ash content analysis in muffle furnaces
Specifications:

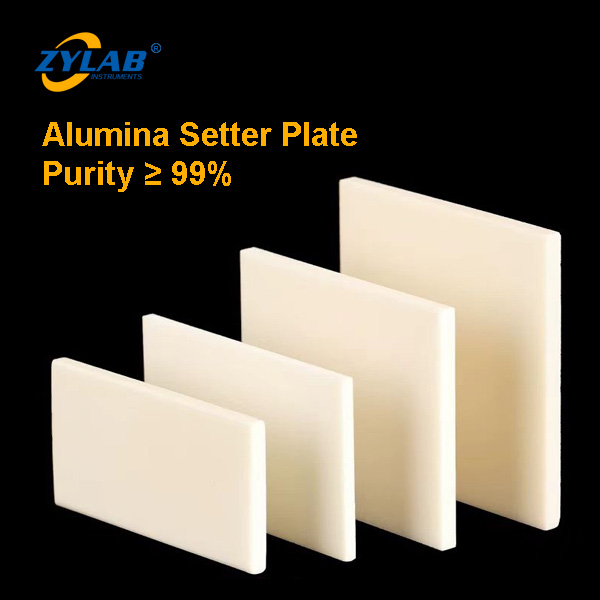

99 Alumina Setter Plate Specification Table (UoM：mm)
| 20×20×1.5 | 45×23×3 | 150×25×3 | 50×30×3 |
| 50×40×3 | 50×50×3 | 60×30×3 | 60×40×3 |
| 60×50×3 | 60×60×3 | 65×65×3 | 70×70×3 |
| 75×75×4 | 80×40×4 | 80×80×4 | 84×75×8 |
| 85×85×4 | 90×60×3 | 90×90×4 | 100×30×3 |
| 100×40×3 | 100×40×6 | 100×40×9 | 100×50×3 |
| 100×50×9 | 100×60×3 | 100×100×3.5 | 100×100×5 |
| 100×100×7 | 100×100×8 | 105×105×4 | 110×110×4 |
| 115×55×3 | 115×65×4 | 115×115×4 | 120×80×5 |
| 120×120×6 | 130×130×6 | 140×140×6 | 150×130×7 |
| 150×150×6 | 150×150×7 | 155×40×4 | 160×120×5 |
| 160×140×5 | 160×160×6 | 180×180×6 | 200×100×6 |
| 200×150×5 | 200×200×8 | 220×220×8 | 250×155×9 |
| 250×250×7 | 160×140×9 | 320×320×6 | 330×330×15 |
We provide made-to-order services to match your furnace chamber specifications.
Why Choose ZYLAB ?
-
Precision-made kiln furniture for laboratory and industrial furnaces
-
Proven performance in high-purity and high-temperature applications
-
Fast delivery and global shipping
-
Customization support from design to final shipment
