ZYLAB Alumina Kiln Furniture for Laboratory Furnace
Introduction:
ZYLAB’s high-purity alumina kiln furniture is engineered for precision sintering, thermal processing, and sample support in laboratory muffle furnaces and box furnaces. Manufactured from ≥99% pure alumina ceramic, these kiln components offer excellent thermal shock resistance, chemical stability, and dimensional accuracy—ensuring clean, consistent performance even in high-temperature environments up to 1700°C.
Please share your muffle furnace or box furnace specifications（inner chamber dimensions (L×W×H) and temperature requirements）, and we will provide a tailor-made solution for you.
Contact us for free consultation or a quote!
Key Features:
-
High Purity: Made of ≥99% Al₂O₃ alumina ceramic, ensuring minimal contamination and high resistance to corrosion and thermal stress.
-
Customizable Design: Available in various plate sizes, thicknesses, and stacking configurations to fit both standard and custom furnace chambers.
-
Excellent Flatness: Precision-machined surfaces maintain sample stability and temperature uniformity.
-
Reusable & Durable: Long service life across multiple sintering cycles.
-

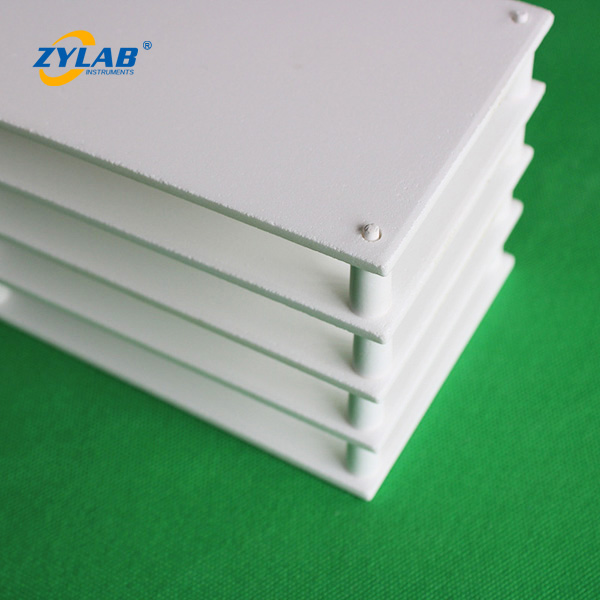

Modular System: Includes setter plates, support posts, and optional grooves or holes for secure multi-level stacking.
Applications of High-Purity Alumina Kiln Furniture:
-
Ceramic sample sintering
-
Powder metallurgy research
-
Thermal post-processing in additive manufacturing
-
High-purity material firing
-
R&D in universities and industrial laboratories
-
Ash content testing, thermal decomposition
Specifications:

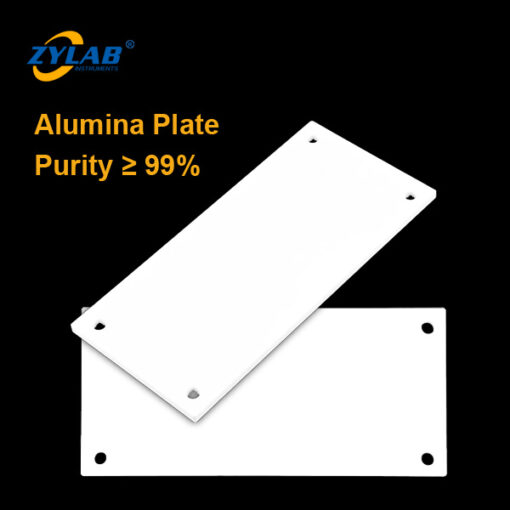

99 Alumina Ceramic Plate Specification Table (UoM：mm)
| 20×20×1.5 | 45×23×3 | 150×25×3 | 50×30×3 |
| 50×40×3 | 50×50×3 | 60×30×3 | 60×40×3 |
| 60×50×3 | 60×60×3 | 65×65×3 | 70×70×3 |
| 75×75×4 | 80×40×4 | 80×80×4 | 84×75×8 |
| 85×85×4 | 90×60×3 | 90×90×4 | 100×30×3 |
| 100×40×3 | 100×40×6 | 100×40×9 | 100×50×3 |
| 100×50×9 | 100×60×3 | 100×100×3.5 | 100×100×5 |
| 100×100×7 | 100×100×8 | 105×105×4 | 110×110×4 |
| 115×55×3 | 115×65×4 | 115×115×4 | 120×80×5 |
| 120×120×6 | 130×130×6 | 140×140×6 | 150×130×7 |
| 150×150×6 | 150×150×7 | 155×40×4 | 160×120×5 |
| 160×140×5 | 160×160×6 | 180×180×6 | 200×100×6 |
| 200×150×5 | 200×200×8 | 220×220×8 | 250×155×9 |
| 250×250×7 | 160×140×9 | 320×320×6 | 330×330×15 |

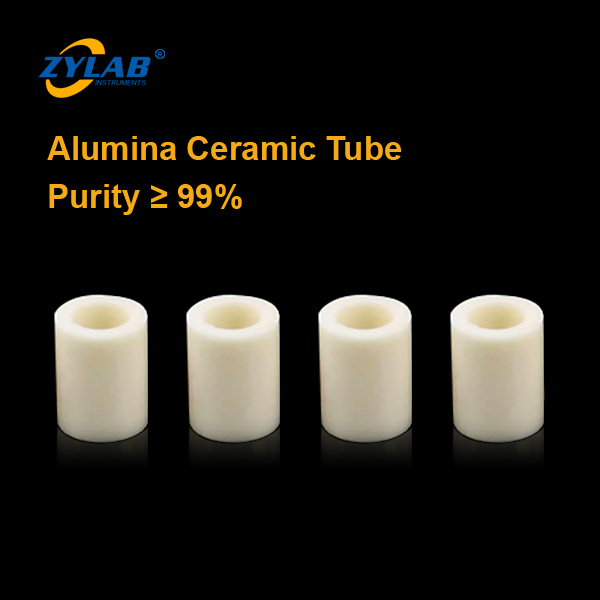

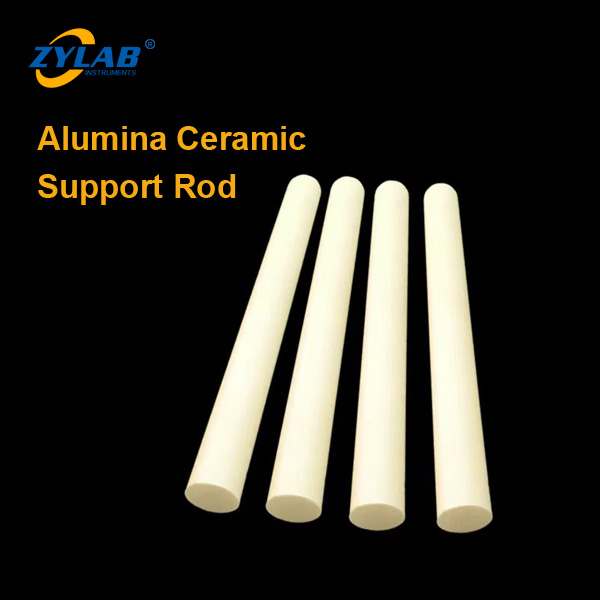

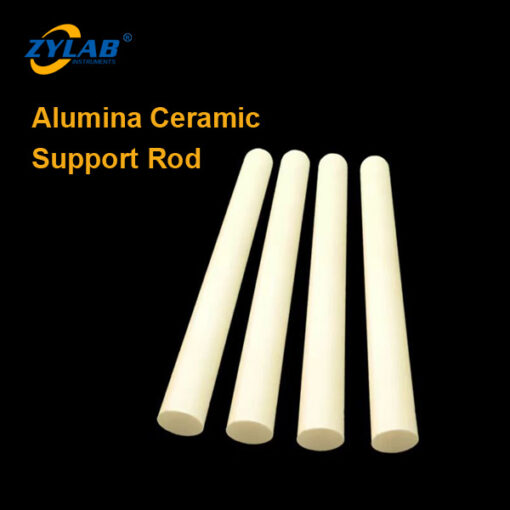

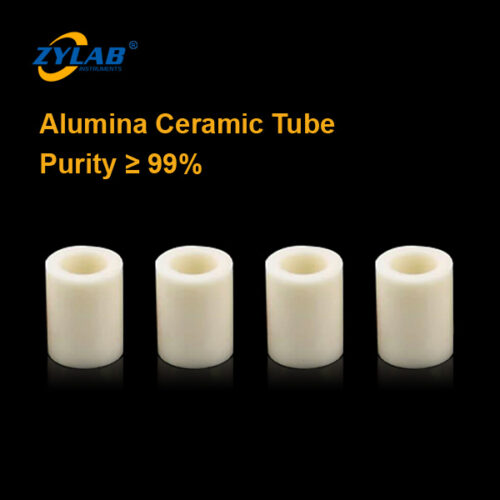

We select support rod and tubes of appropriate dimensions based on the size of the alumina setter plates and the height of the samples to be processed.
Why Choose ZYLAB Kiln Furniture?
-
Precision-engineered for laboratory and industrial furnaces
-
Fast response and full customization available
-
Compatible with most horizontal and vertical muffle furnace brands
-
Trusted by research institutions across Europe and beyond
