Vacuum Atmosphere Muffle Furnace for Titanium Diffusion Welding with Argon Purging and Mild Vacuum Control

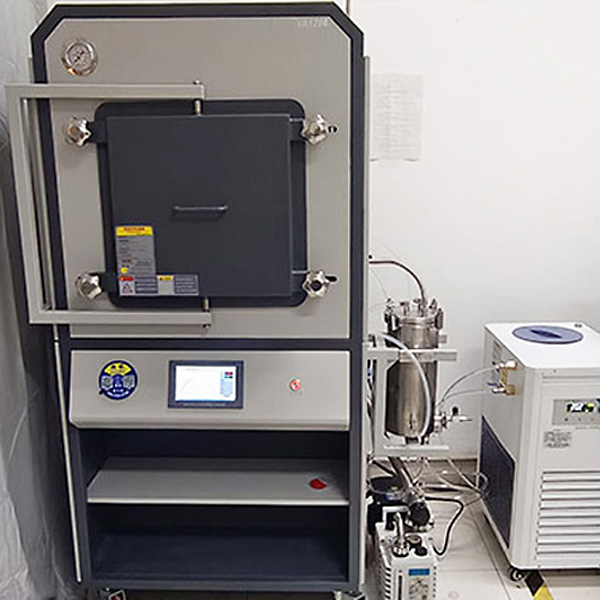

ZYLAB Vacuum Atmosphere Muffle Furnace

Introduction

The Vacuum Atmosphere Muffle Furnace for Titanium Diffusion Welding is a high-performance thermal processing system designed for high-temperature treatment under vacuum or controlled atmosphere conditions.

Engineered specifically for titanium and reactive metal diffusion bonding, this furnace integrates argon purging and mild vacuum control to create a clean, oxygen-free environment—effectively preventing oxidation and contamination during critical thermal processes.

Featuring an advanced five-sided heating structure, the system ensures exceptional temperature uniformity, making it ideal for applications requiring precise thermal control and consistent heat distribution.

This furnace is widely used in materials science, metallurgy, aerospace research, and semiconductor manufacturing, where process purity and repeatability are essential.

Key Features

1. Five-Sided Heating Design for Superior Temperature Uniformity

• Unique 5-side heating configuration (front, rear, left, right, and bottom)
• Ensures uniform heat distribution from all directions
• Multi-zone heating system with independent control for each zone
• Minimizes thermal gradients and improves process consistency
• Ideal for precision diffusion welding and heat treatment

2. Vacuum & Controlled Atmosphere Processing

• Integrated vacuum system enables rapid chamber evacuation
• Supports mild vacuum environment to remove residual oxygen
• Built-in argon purging system ensures inert atmosphere protection
• Compatible with multiple gases, including:
  • Argon (Ar)
  • Nitrogen (N₂)
• Prevents oxidation, contamination, and unwanted reactions

3. Optimized for Titanium Diffusion Welding

• Specially designed for titanium and high-reactivity materials
• Provides oxygen-free, stable thermal environment
• Enhances bonding strength and microstructure quality
• Ensures repeatable and reliable diffusion welding results

4. Precise Temperature Control & Stability

• Advanced PID temperature control system
• Temperature control accuracy up to ±1°C
• Equipped with K-type thermocouple for real-time monitoring
• Excellent thermal stability supported by five-sided heating structure
• Suitable for complex thermal cycles and high-precision processes

5. Intelligent & Automated Control System

• Embedded control system with user-friendly interface
• 7-inch color touchscreen for intuitive operation
• Supports programmable multi-step heating profiles
• Non-linear temperature correction for enhanced accuracy
• Multi-language interface (English / Chinese)

6. Data Recording & Remote Monitoring

• Automatic recording of key process parameters
• Enables process traceability and optimization
• Supports remote monitoring and system diagnostics
• Network-enabled design for smart laboratory integration

Technical Specifications

Model	VA1200-40
Heating Chamber Volume	64 L
Chamber Size (W × H × D)	400 × 400 × 400 mm
Max Temperature	1200°C
Temperature Accuracy	±1°C
Heating Rate	1°C/h – 20°C/min
Heating Elements	Alloy resistance wire
Power Supply	AC 380V, Three-phase five-wire
Rated Power	10 kW
Temperature Sensor	K-type thermocouple (φ1 × 350 mm)
Touch Screen	7-inch
Gas Flow Control	Float flowmeter 0.3–3 L/min
Furnace Dimensions	980 × 1790 × 910 mm (L × H × D)
Net Weight	Approx. 400 kg
Control System		Embedded operating system with bilingual (Chinese/English) graphical interface, 7-inch true color touch screen input, intelligent human-machine interaction mode, non-linear temperature correction. Can store up to 15 curves, each with up to 30 “time-temperature” segments, saving time on repeated curve modifications. Features include over-temperature alarm, thermocouple break prompt, and leakage protection.
Water Storage Tank (Cooling System)		Integrated water storage tank used as cooling medium Supports controlled cooling and thermal stability Enhances equipment reliability during long-duration processes
Atmosphere Protection Box (Optional)		Designed to create and maintain a dedicated protective atmosphere inside the furnace Prevents oxidation, contamination, or unwanted reactions during heating Custom sizes available according to sample dimensions and process requirements
Warranty & Support	18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support.

Applications of Vacuum Atmosphere Muffle Furnace

• Titanium diffusion welding
• Aerospace alloy bonding
• Reactive metal heat treatment
• Powder metallurgy under controlled atmosphere
• Semiconductor material processing
• Advanced materials research
