Horizontal Tube Furnace Range – Precision Heat Treatment up to 1700°C

ZYLAB Horizontal Tube Furnace Range

Introduction

The ZYLAB Horizontal Tube Furnace Range offers reliable, high-precision thermal processing for scientific research and industrial development. With customizable tube sizes, temperature ranges up to 1700°C, and multi-zone temperature control, this tube furnace series offers unparalleled flexibility and uniformity for material testing, sintering, annealing, and chemical vapor deposition (CVD).

Key Features

• Temperature Options: 1200°C, 1500°C, and 1700°C.

• Tube Materials: Quartz tube (up to 1200°C) and alumina tube (up to 1700°C).

• Horizontal Design: Ensures easy sample loading and compatibility with horizontal process workflows.

• Intelligent Control System: Digital PID controller with touchscreen interface and programmable temperature profiles.

• Multi-Zone Control: Single-zone, dual-zone, or three-zone temperature management for enhanced uniformity.

• Atmosphere Compatibility: Supports vacuum and controlled gas atmospheres (e.g., argon, nitrogen, hydrogen).

• Double-Layer Steel Shell with Fan Cooling: Keeps the external surface below 50°C to ensure user safety.

• Safety Features: Over-temperature protection, door interlock, and leakage current detection.

• Customization Available: Configurable tube sizes, vacuum systems, and gas supply modules.

Typical Applications of Horizontal Tube Furnace

The ZYLAB Horizontal Tube Furnace Range is engineered for consistent and reproducible heating environments, making it suitable for:

• Advanced Materials Research: Heat treatment of powders, ceramics, and composites under controlled conditions.

• Battery & Energy Materials: Sintering and annealing of cathode/anode materials, solid electrolytes, and fuel cell components.

• Semiconductor Processing: Wafer annealing, oxide layer growth, and doping experiments in inert or reducing atmospheres.

• Chemical Vapor Deposition (CVD): Thin-film growth for electronic, optical, or catalytic applications using gas-phase precursors.

• Nanomaterial Synthesis: Preparation of carbon nanotubes, graphene, and other nanostructures via high-temperature processing.

• Catalysis Studies: Calcination and activation of catalysts for chemical reactions under specific gas flows.

• Academic & Industrial R&D: Ideal for universities, research institutes, and materials labs working with temperature-sensitive experiments.

Technical Specifications of Horizontal Tube Furnace

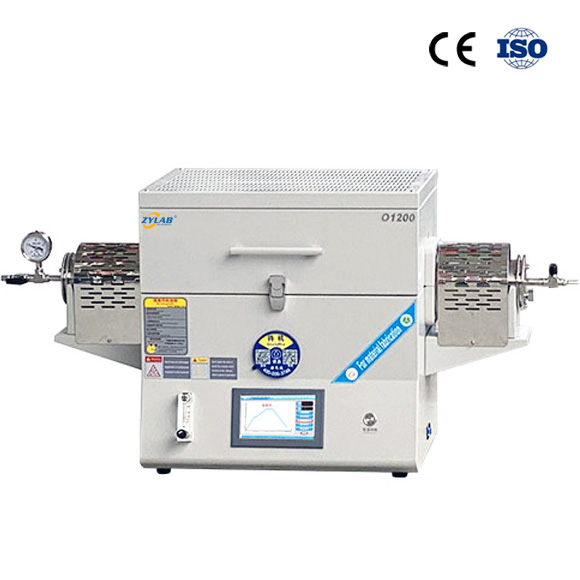

1200°C Horizontal Tube Furnace

Name	1200°C Mini Tube Furnace	1200°C Single Zone Tube Furnace	1200°C Double Zone Tube Furnace	1200°C Three Zone Tube Furnace
Chamber Model	Open	Open	Open	Open
Heating Zone	Single	Single	Dual(2 zones)	Three(3 zones)
Working voltage	AC208-240V 50/60HZ	AC208-240V 50/60HZ	AC208-240V 50/60HZ	AC380V 50/60HZ
Max. Power	1.2KW	4KW	2KW+2KW	2KW+4KW+2KW
Maximum Temperature	1200°C (for ≤1 hour)	1200°C (for ≤1 hour)	1200°C (for ≤1 hour)	1200°C (for ≤1 hour)
Continuous Working Temp	1150°C (continuous)	1150°C (continuous)	1150°C (continuous)	1150°C (continuous)
Max Heating Rate	≤20°C/min	≤20°C/min	≤20°C/min	≤20°C/min
Length of Heating Zone	200mm	440mm	200+200mm Optional: 300+300mm	200+400+200mm
Tube Material	High purity quartz	High purity quartz	High purity quartz	High purity quartz
Tube Size	Φ25×600mm Φ50×600mm	Φ50×1000mm Φ60×1000mm Φ80×1000mm Φ100×1000mm	Φ50×1000mm Φ60×1000mm Φ80×1000mm Φ100×1000mm	Φ50×1400mm Φ60×1400mm Φ80×1400mm Φ100×1400mm
Temperature Accuracy	±1°C	±1°C	±1°C	±1°C
Net Weight	23 kg	60 kg	60 kg	90 kg

1500°C Horizontal Tube Furnace

Name	1500°C Small Tube Furnace	1500°C Single Zone Tube Furnace	Extended Single Zone Tube Furnace	1500°C Double Zone Tube Furnace
Heating Zone	Single	Single	Single	Dual(2 zones)
Working voltage	AC208-240V 50/60HZ	AC208-240V 50/60HZ	380V 50Hz(as requirement)	380V 50Hz(as requirement)
Max. Power	1.5KW	3KW	5KW	5KW
Maximum Temperature	1500°C (for ≤1 hour)	1500°C (for ≤1 hour)	1500°C (for ≤1 hour)	1500°C (for ≤1 hour)
Continuous Working Temp	1450°C (continuous)	1450°C (continuous)	1450°C (continuous)	1450°C (continuous)
Max Heating Rate	≤20°C/min	≤20°C/min	≤20°C/min	≤20°C/min
Length of Heating Zone	180mm	310mm	460mm	230+230mm
Tube Material	High Purity Alumina(Corundum tube)	High Purity Alumina(Corundum tube)	High Purity Alumina(Corundum tube)	High Purity Alumina(Corundum tube)
Tube Size	Φ50×700mm	Φ50×1000mm Φ60×1000mm Φ80×1000mm	Φ50×1200mm Φ60×1200mm Φ80×1200mm	Φ50×1200mm Φ60×1200mm Φ80×1200mm
Temperature Accuracy	±1°C	±1°C	±1°C	±1°C
Net Weight	30 kg	45 kg	100 kg	100 kg

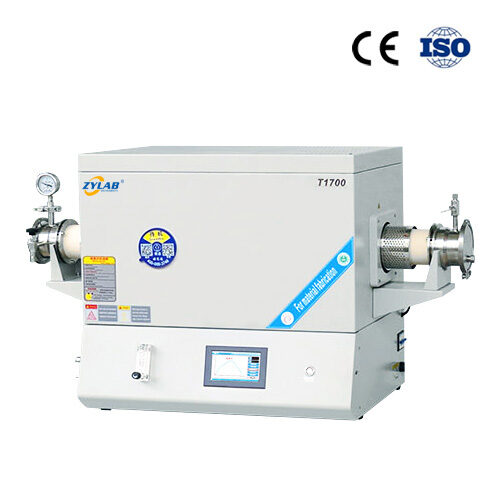

1700°C Horizontal Tube Furnace

Name	1700°C Small Tube Furnace	1700°C Single Zone Tube Furnace	Extended Single Zone Tube Furnace	1700°C Double Zone Tube Furnace
Heating Zone	Single	Single	Single	Dual(2 zones)
Working voltage	AC208-240V 50/60HZ	AC208-240V 50/60HZ	380V 50Hz(as requirement)	380V 50Hz(as requirement)
Max. Power	1.8KW	4.5KW	7KW	7KW
Maximum Temperature	1700°C (for ≤1 hour)	1700°C (for ≤1 hour)	1700°C (for ≤1 hour)	1700°C (for ≤1 hour)
Continuous Working Temp	1650°C (continuous)	1650°C (continuous)	1650°C (continuous)	1650°C (continuous)
Max Heating Rate	≤20°C/min	≤20°C/min	≤20°C/min	≤20°C/min
Length of Heating Zone	180mm	310mm	460mm	230+230mm
Tube Material	High Purity Alumina(Corundum tube)	High Purity Alumina(Corundum tube)	High Purity Alumina(Corundum tube)	High Purity Alumina(Corundum tube)
Tube Size	Φ50×700mm	Φ50×1000mm Φ60×1000mm Φ80×1000mm	Φ50×1200mm Φ60×1200mm Φ80×1200mm	Φ50×1200mm Φ60×1200mm Φ80×1200mm
Temperature Accuracy	±1°C	±1°C	±1°C	±1°C
Net Weight	30 kg	45 kg	100 kg	100 kg

Customization Options

ZYLAB offers flexible customization to meet specific process requirements:

• Multi-zone temperature control (1, 2, or 3 zones)

• Integrated vacuum pump and gas control modules

• Sliding furnace chamber or movable tube design

• Rotating tube or vibration system for uniform heating

• Exhaust gas treatment system

• Compatible with glove box connections

Advantages of ZYLAB Furnaces

• Flexible Customization – Designed to meet diverse laboratory demands

• Widely Used in Research and Industry – Reliable performance in materials labs, universities, and production environments

• Professional Support – Dedicated technical service and documentation

• Efficient Logistics – Timely delivery and global shipment options
