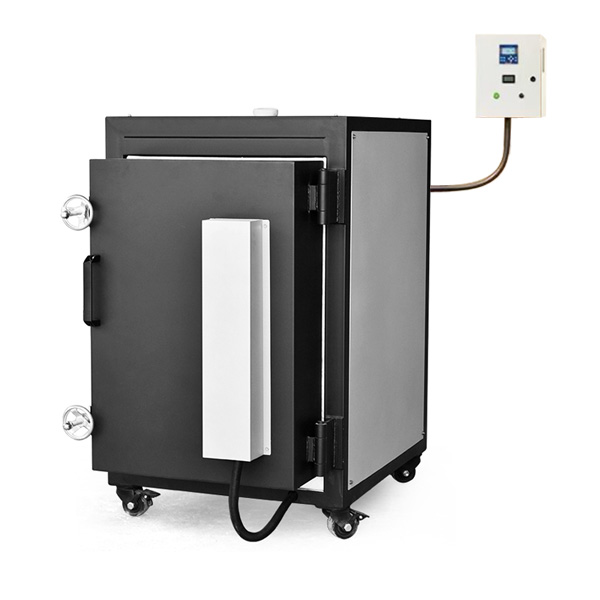

150L 1300°C Intelligent Front-Loading Pottery Kiln
Introduction
This Front-Loading Pottery Kiln is a professional high-temperature electric kiln for pottery(ceramic art).
Exquisite and reasonable design will bring you a better ceramic art experience.
Main Features
1.150L (W50cm*H66cm*D453cm rectangular liner) large inner space, get multiple pieces at a time, greatly improve firing efficiency, more practical.
2. Five-sided heating, three-dimensional cycle firing in all directions, firing evenly and naturally to avoid problems such as bad burning of pottery mud, deformation of works, and cracking of works.
3. High quality silicon molybdenum wire as heating elements, long life and high temperature resistance, high temperature up to 1300.C.
4. High-density refractory brick, good thermal shock stability, resistance to rapid cooling and heat, can resist the erosion of acid slag and acid gas.
5. Compact universal wheel, single wheel can bear 250kg, pressure resistant material, equipped with fixed locking rotation device, easy to move.

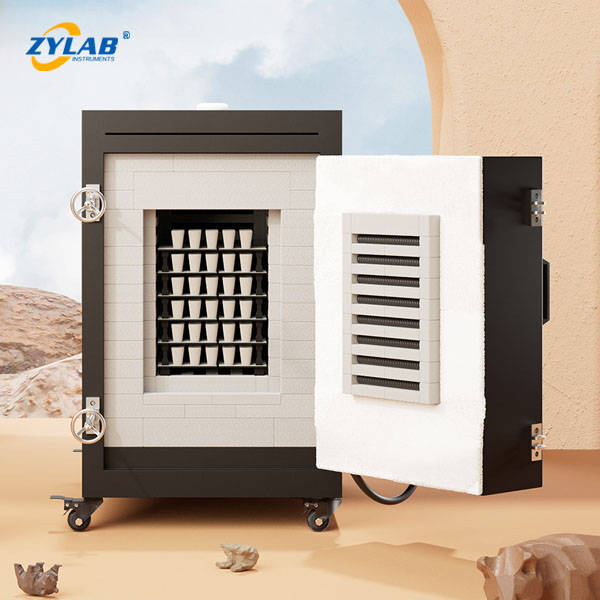

6. The top is designed with a fire viewing hole, and is accompanied by a polycrystalline cotton cap, which is convenient to take and has double insulation and double heat preservation.
7. Round kiln door valve, ergonomic and reasonable design, the size is completely in line with the palm of an adult, even girls can easily rotate.
8. Four layers of insulation stucture, reduce heat dissipation, lower the temperature of the kiln body, heat insulation is not hot. When firing, the temperature of the whole room increase does not exceed 2.C.
9. Intelligent APP control, it can be controlled remotely and controlled by one key.
10. A variety of firing modes to meet diverse needs, whether it is on-glaze underglaze, glaze firing (color glaze, artistic glaze, crack glaze), green body drying, ceramic firing, blue and white firing, etc.
11. Green and environmental protection, low energy consumption and more energy-saving, long-term use is more cost-effective.
12. Kiln + kiln car(optional ), it is more convenient to put and take the pieces.
Main Specifications
| Model | ZYLAB-02 |
| Kiln structure | • High quality Mullite brick + high temperature polycrystalline cotton as insulation Materials. • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C. |
| Chamber size
(working space) |
500(W)*660(H)*530(D)mm(150L)
Other optional sizes: 340(W)*590(H)*420(D)mm(84L) 500(W)*800(H)*540(D)mm(200L) 600(W)*850(H)*600(D)mm(300L) 660(W)*830(H)*920(D)mm(500L) |
| Max. temperature | 1300 ℃ |
| Working temperature | Rt -1250 ℃ |
| Intelligent Touch Screen
temperature controller |
•PID automatic control and auto-tune function. •32 programmable segments for precise control. •Built in protection for over-heated and broken thermal couple. •Automatically run and stop, without personnel on duty. |
| Heating element | High quality Silicon Molybdenum Wire, 5 heating sides |
| Heating rate | 0~20℃/min |
| Temperature accuracy | +/- 1 ℃ |
| Thermocouple | S type |
| Working voltage | 380V 50Hz |
| Max. Power | 18 Kw |
| Dimension | 940*1300*1400mm |
| Weight | About 500kgs |
| Warranty | 2 years (not including consumable parts, such as heating elements, thermocouple, etc), lifetime support. |
| Certificate | ISO9001 |
Turnkey solution are available:(optional)
Equipment (pottery wheel ,drying oven, glazing machines, air pump, pressing machine, etc.)
(Details, pls contact with our expert)
Which kinds of industry can use this Front-Loading Pottery Kiln?
Educational Institutions (Schools, Colleges & Universities)
Ceramic Art & Sculpture
Pottery Workshops & Training Centers
Professional Ceramic Studios
Applications:
Professional high-temperature electric kiln designed for pottery and ceramic art firing.
