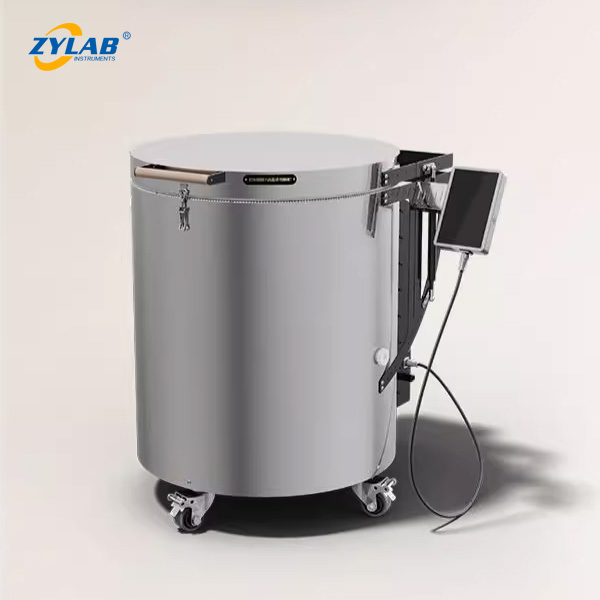

ZYLAB Smart 60L Electric Kiln for Ceramic Firing
Introduction
The ZYLAB Smart 60L Electric Kiln is a high-performance, top-loading ceramic kiln designed for professional ceramic studios, art classrooms, and art workshops. Featuring a 360° full-ring heating structure, this kiln ensures even heat distribution throughout its spacious 60L chamber. With its touchscreen controller, custom firing programs, and smart operation system, it brings precision and convenience to high-temperature ceramic firing.
Key Features
-
60L Firing Chamber
Spacious chamber allows multiple pieces to be fired in a single batch — for example, up to 65 cups measuring 7 cm in diameter and 10 cm in height can be accommodated at once. With an internal height of 42 cm, the kiln also supports firing of larger-sized ceramic pieces. -

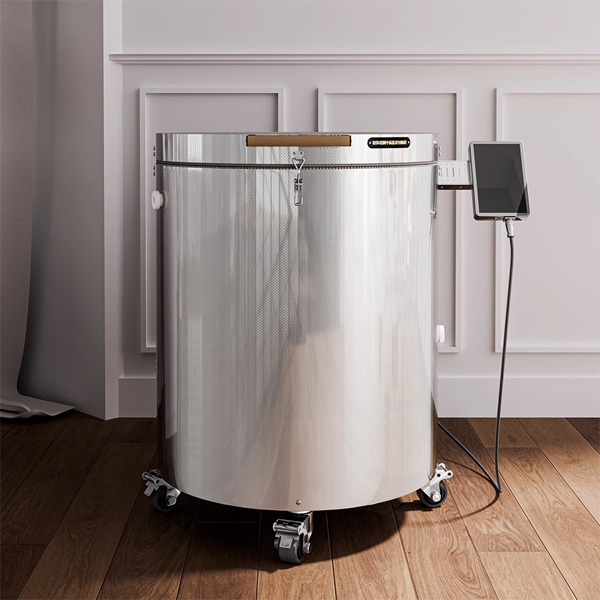

Full Ring Firing Design
Advanced 360° ring-shaped heating system ensures even temperature distribution, reducing hot spots and improving firing consistency. -

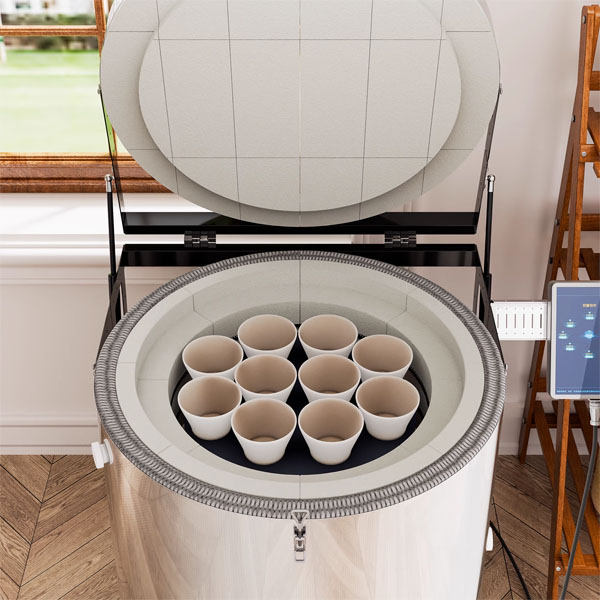

Compact, Top-Loading Structure
Space-saving top-loading design with a fully circular inner chamber allows easy loading/unloading while maximizing internal space. -
Smart Control System
Custom-developed intelligent controller with visual menu interface and preset programs. Supports one-touch operation for multiple firing modes. -
Concealed Thermocouple Placement
Integrated hidden thermocouple enhances space efficiency and prolongs temperature sensor lifespan. -

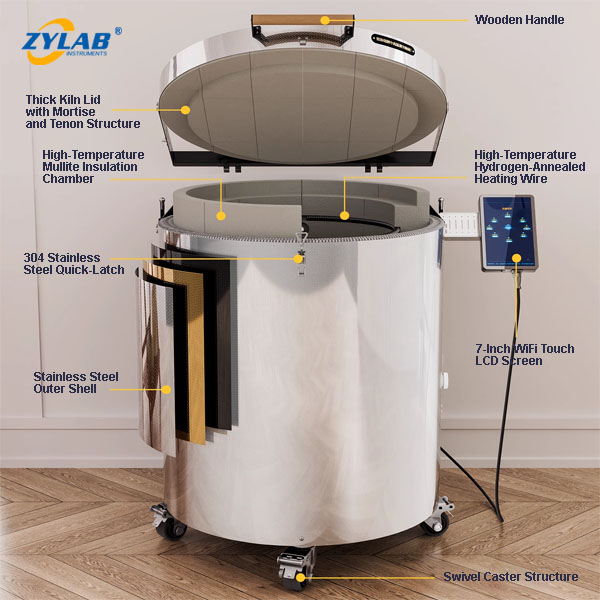

9.5cm Thick Mortise-and-Tenon Lid
Traditional mortise-and-tenon construction with reinforced insulation for superior heat retention and energy savings. - Lid Hover Function
When opened, the lid can stay suspended at multiple angles without falling, making it labor-saving and easy to operate. -
High-Temperature Hydrogen-Annealed Heating Elements
Durable and oxidation-resistant heater wires ensure long-term stable performance in high-temperature ceramic applications. -
Dual Language Interface
User-friendly bilingual (English/Chinese) touchscreen makes it easy to operate for both domestic and international users. -
Insulated rubber swivel casters
Make moving and handling easier, offering greater convenience for home use.
Applications of 60L Electric Kiln for Ceramic Firing
-
Home pottery studios — Perfect for hobbyists and ceramic artists working from home
-
Art schools and educational institutions — Reliable for hands-on teaching and student practice
-
Professional ceramic workshops — Supports small-batch production of pottery, sculptures, and ceramic wares
-
Pottery cafes and community studios — Easy-to-use interface and efficient heating for group activities
Technical Specifications
| Model | RK-60 |
| Chamber Volume | 60L (0.06 m³) |
| Power Rating | 6.6 kW |
| Voltage | AC 220V / AC 380V |
| Internal Dimensions | Ø420 mm × H420 mm |
| External Dimensions | Height: 790 mm |
| Diameter: 650 mm (855 mm with handles) | |
| Shelf Size | Ø350 mm round shelf plate |
| Weight | Net: ~135 kg |
| Gross: ~181 kg (incl. packaging) | |
| Max Temperature | 1300°C |
| Working Temperature | Up to 1280°C for continuous operation |
| Heating Rate | 7°C/min |
| Heating Element | Ø14 mm hydrogen-annealed alloy wires |
| Insulation Thickness | Side: 120 mm |
| Bottom: 130 mm | |
| Top: 95 mm | |
| Viewing/Exhaust Port | Ø18 mm |
| Power Consumption per Firing | ~27 kWh (empty chamber test) |
| Insulation Resistance | 0.6–2 MΩ |
| Forward Pressure Resistance | >500 kPa |
| Reverse Voltage Resistance | >2 MPa |
| Signal Feedback | >0.5 s/cycle |
| Thermal Conductivity (Curved Surface) | ≤0.2 W/m³ |
Cooling Tips
-
Above 1000°C: Open both ventilation holes to accelerate heat dissipation.
-
Around 300°C: Slightly crack open the kiln lid (5–10 cm gap) for controlled cooling.
-
Below 200°C: Turn off the power and safely remove your ceramic artworks.
Installation Requirements
-
63A circuit breaker (without residual current device).
-
Use copper core wire with a cross-sectional area ≥ 6 mm² (national standard compliant).
Turnkey solution are available:(optional)
Equipment (pottery wheel ,drying oven, glazing machines, air pump, pressing machine, etc.)
(Details, pls contact with our expert)
