Compact Tube Furnace Range – 1200°C / 1500°C / 1700°C Lab Furnaces

ZYLAB Compact Tube Furnace Range

Introduction

The ZYLAB Compact Tube Furnace Range offers a versatile selection of benchtop furnaces designed for high-temperature experiments in laboratories, universities, and R&D institutions. Available with maximum temperatures of 1200°C, 1500°C, or 1700°C, these single-zone tube furnaces deliver precise thermal control in a compact footprint. Each model can be configured with optional vacuum systems, gas inlet/outlet ports, and custom tube sizes to meet diverse heat treatment needs.

Key Features

• Compact Benchtop Design
  Small footprint fits easily on laboratory workbenches, ideal for limited space environments.

• Multiple Temperature Options
  Choose from 1200°C, 1500°C, or 1700°C models based on your process requirements.

• High-Quality Tube Materials
  Equipped with quartz tubes (for ≤1200°C) or alumina tubes (for ≤1700°C) for thermal and chemical stability.

• Digital PID Temperature Control
  Programmable multi-step PID controller ensures stable, precise temperature profiles.

• Single-Zone Heating
  Uniform and stable temperature control using high-quality heating elements and thermal insulation.

• Customizable System Options
  Configurable tube dimensions, gas flow systems, and vacuum components to suit your process.

• Safety and Reliability
  CE-certified design with over-temperature protection and thermal insulation for safe operation.

Applications of Compact Tube Furnace

• Sintering of Ceramics and Metal Powders
  Suitable for small-scale sintering processes in additive manufacturing, materials development, and dental applications.

• Thermal Annealing of Materials
  Used in semiconductor research, electronics, and thin-film processing for improving material properties and relieving internal stresses.

• Material Synthesis and Phase Transition Studies
  Ideal for synthesizing new compounds and studying reactions under controlled thermal conditions.

• Calcination and Thermal Decomposition
  Effective for removing organic binders, volatiles, or pre-treating powders before further processing.

• Heat Treatment in Controlled Atmospheres
  With optional vacuum and gas flow systems, it can handle inert, reducing, or oxidizing conditions for advanced thermal experiments.

• Chemical Vapor Deposition (CVD) Research
  Enables laboratory-scale CVD trials for coating development or surface modification.

• Debinding and Pre-Sintering of 3D Printed Components
  Useful in post-processing ceramic or metal parts produced by 3D printing.

• General Laboratory Heating
  Versatile for drying, roasting, or heating samples in university or industrial research labs.

Technical Specifications of Compact Tube Furnace

Small Tube Furnaces

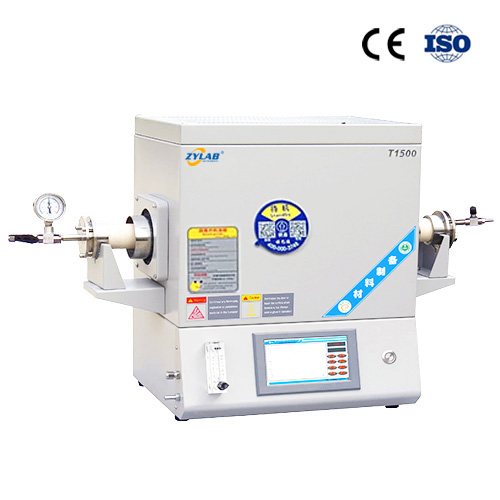

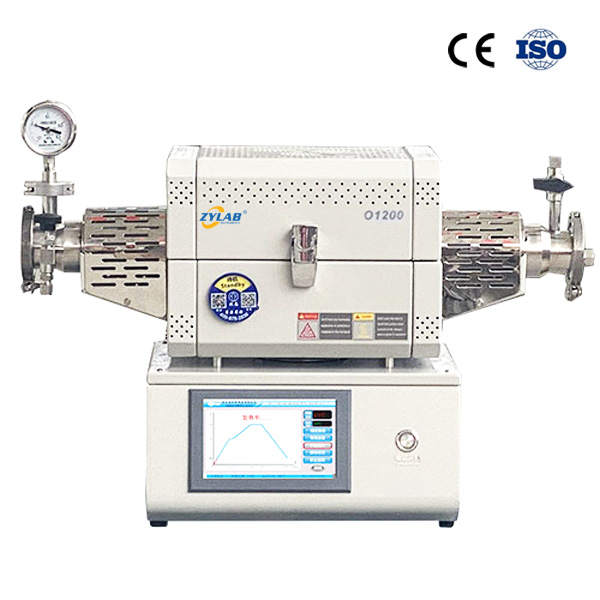

Name	1200°C Mini Tube Furnace	1500°C Small Tube Furnace	1700°C Small Tube Furnace
Chamber Model	Open	Closed	Closed
Heating Zone	Single	Single	Single
Working voltage	AC208-240V 50/60HZ	AC208-240V 50/60HZ	AC208-240V 50/60HZ
Max. Power	1.2KW	1.5KW	1.8KW
Maximum Temperature	1200°C (for ≤1 hour)	1500°C (for ≤1 hour)	1700°C (for ≤1 hour)
Continuous Working Temp	1150°C (continuous)	1450°C (continuous)	1650°C (continuous)
Max Heating Rate	≤20°C/min	≤20°C/min	≤20°C/min
Length of Heating Zone	200mm	180mm	180mm
Tube Material	High purity quartz	High Purity Alumina(Corundum tube)	High Purity Alumina(Corundum tube)
Tube Size	Φ25×600mm Φ50×600mm	Φ50×700mm	Φ50×700mm
Temperature Accuracy	±1°C	±1°C	±1°C
Net Weight	23 kg	30 kg	30 kg

Single Zone Tube Furnaces

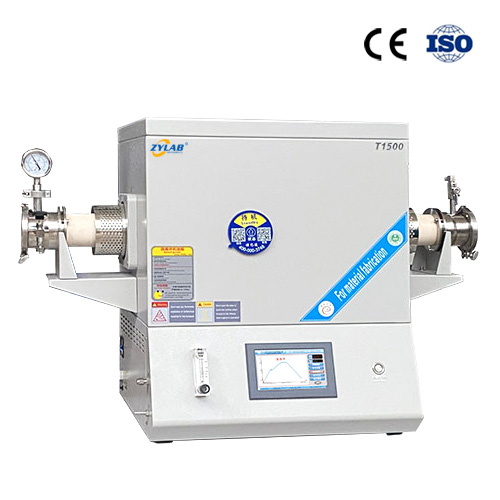

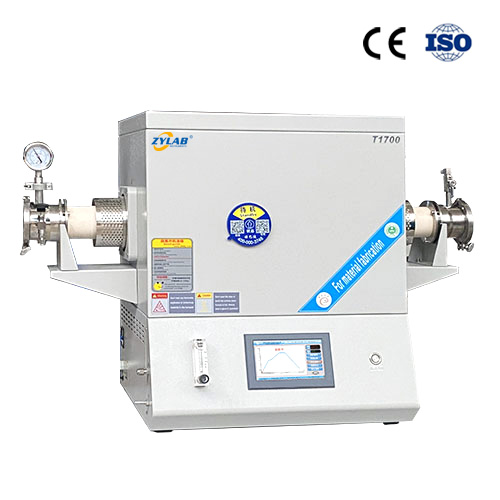

Name	1200°C Single Zone Tube Furnace	1500°C Single Zone Tube Furnace	1700°C Single Zone Tube Furnace
Chamber Model	Open	Closed	Closed
Heating Zone	Single	Single	Single
Working voltage	AC208-240V 50/61HZ	AC208-240V 50/60HZ	AC208-240V 50/60HZ
Max. Power	4KW	3KW	4.5KW
Maximum Temperature	1200°C (for ≤1 hour)	1500°C (for ≤1 hour)	1700°C (for ≤1 hour)
Continuous Working Temp	1150°C (continuous)	1450°C (continuous)	1650°C (continuous)
Max Heating Rate	≤20°C/min	≤20°C/min	≤20°C/min
Length of Heating Zone	440mm	310mm	310mm
Tube Material	High purity quartz	High Purity Alumina(Corundum tube)	High Purity Alumina(Corundum tube)
Tube Size	Φ50×1000mm Φ60×1000mm Φ80×1000mm Φ100×1000mm	Φ50×1000mm Φ60×1000mm Φ80×1000mm	Φ50×1000mm Φ60×1000mm Φ80×1000mm
Temperature Accuracy	±1°C	±1°C	±1°C
Net Weight	60 kg	45 kg	45 kg

Customization Options

ZYLAB offers flexible customization to meet specific process requirements:

• Multi-zone temperature control (1, 2, or 3 zones)

• Integrated vacuum pump and gas control modules

• Sliding furnace chamber or movable tube design

• Rotating tube or vibration system for uniform heating

• Exhaust gas treatment system

• Compatible with glove box connections

Advantages of ZYLAB Furnaces

• Flexible Customization – Designed to meet diverse laboratory demands

• Widely Used in Research and Industry – Reliable performance in materials labs, universities, and production environments

• Professional Support – Dedicated technical service and documentation

• Efficient Logistics – Timely delivery and global shipment options
