Automatic Lab Press for Powder Pellet Pressing (2–60 Ton)

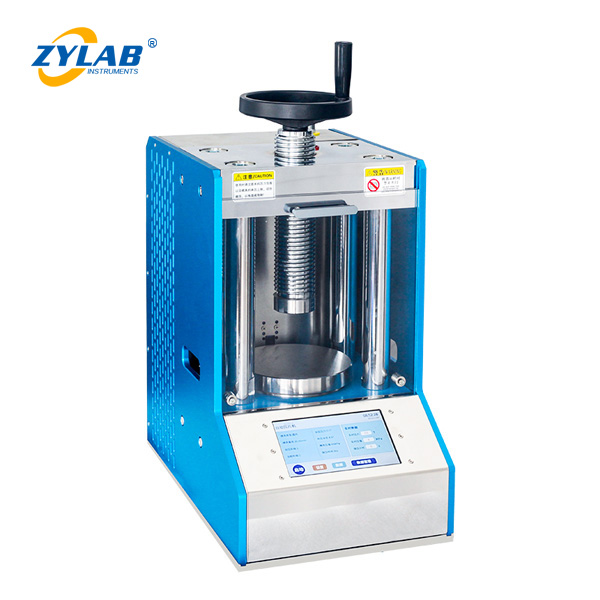

ZYLAB Automatic Lab Press

Introduction:

The ZYLAB Automatic Lab Press is a fully automated hydraulic press designed specifically for powder pellet preparation in laboratories. Available in 2-ton, 10-ton, 20-ton, 30-ton, 40-ton, and 60-ton models, it is ideal for precise and efficient powder compaction and pellet formation. This press is independently developed by our company, incorporating advanced control systems and user feedback from universities and research institutions.

Engineered based on our proven manual and electric press models, the automatic press offers accurate pressure control, programmable operation, and high safety standards. It is suitable for a wide range of laboratory applications including sample preparation for spectroscopy, XRF analysis, and materials research.

Main Features of Automatic Lab Press :

1.Smart Pressure Control System

• Integrated SAVTA intelligent system

• Supports 5-stage pressure programming (upgradable to 15 stages)

• Ensures stable and repeatable pressure profiles

2. Fully Automated Operation

• Automated pressurizing, pressure compensation, holding, and release

• Reduces manual intervention and improves consistency

3. Real-Time Pressure Conversion

• Converts hydraulic pressure to sample pressure automatically

• Displays real-time pressure values

• Includes overpressure warning and alert system

4. User-Friendly Interface

• 7-inch touchscreen with English/Chinese switchable UI

• Intuitive menus and programmable parameters for easy operation

5. High Safety Standards

• 10 mm alumina side panels and 6 mm acrylic safety door

• Protects operators during high-pressure operation

6. Limit and Overload Protection

• Automatically releases pressure if the cylinder height exceeds limit

• Triggers automatic pressure release when system pressure exceeds maximum

7. Fault Detection & Emergency Stop

• Detects mechanical and pressure system faults

• Built-in emergency stop button for immediate shutdown

8. Data Storage & Export

• Stores up to 10,000 records

• Supports USB export for easy data management and traceability

9. Electrical Safety Protection

• Equipped with leakage protection

• Integrated emergency stop button ensures safe operation

Applications:

• Laboratory powder pressing and pellet preparation

• XRF/XRD sample preparation

• Material science and chemistry experiments

• Suitable for ceramics, catalysts, rare earths, batteries, and more

Specifications:

Why Choose ZYLAB Automatic Lab Press?

• Precise control, safe design, and reliable automation

• Trusted by university labs, R&D centers, and material testing facilities

• Engineered for long-term use with high structural integrity and software flexibility

Matching Die Set：

If you require other special-shaped die sets, or specific types such as tungsten carbide dies, XRF-dedicated molds, or electrically heated die sets, please contact our customer service team immediately. Our technical engineers will assist you in evaluating feasibility and providing customized solutions tailored to your application needs.
