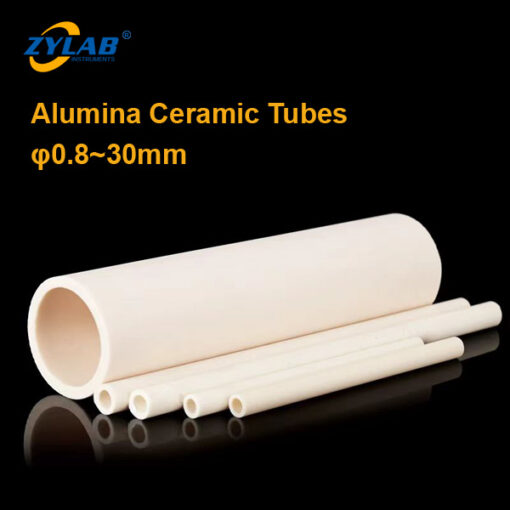

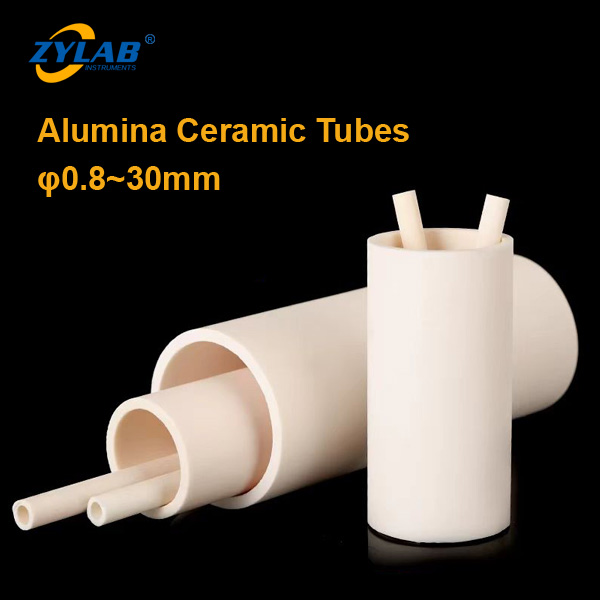

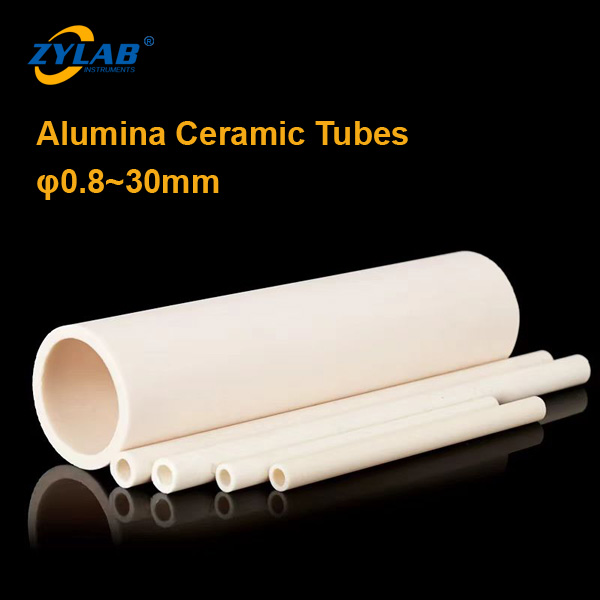

ZYLAB Alumina Ceramic Tube
Product Details:
ZYLAB Alumina Ceramic Tube is designed for high-temperature and high-purity applications, offering outstanding thermal stability, excellent corrosion resistance, and mechanical strength. Manufactured from high-purity alumina (>99%), our ceramic tubes are ideal for demanding environments such as laboratory testing, high-temperature furnaces, and industrial processing.
Whether used for protective sheaths, insulation sleeves, or as part of scientific instrumentation, ZYLAB alumina tubes deliver reliable performance even under extreme conditions.
-
Material: High-purity alumina (＞99%)
-

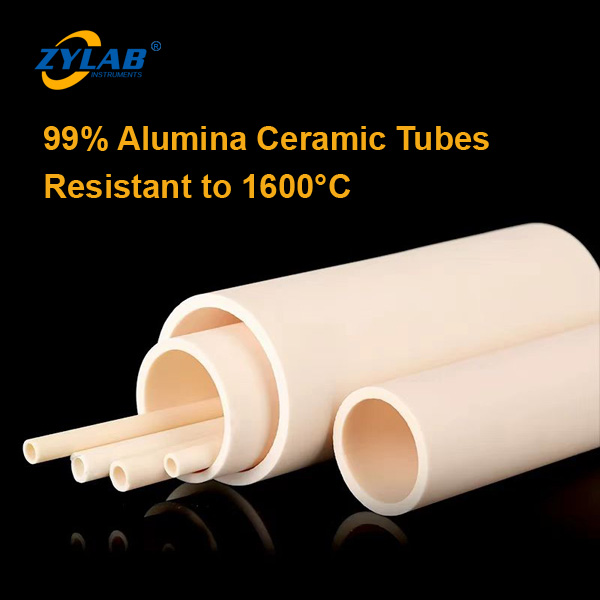

Temperature Resistance: Long-term operating temperature up to 1600°C
-
Strong and Durable: Stable under thermal and mechanical stress
-
Corrosion Resistant: Handles harsh chemicals and atmospheres
-
Excellent Insulation: Reliable electrical insulation at high temperatures
For more information, custom orders, or technical support, please contact us.
Applications
-
High-temperature furnace components
-
Protective tubes for thermocouples
-
Insulating sleeves for heating elements
-
Laboratory analysis and sample preparation
-
Gas diffusion and chemical reaction processes
-
Ceramic support rods and spacers

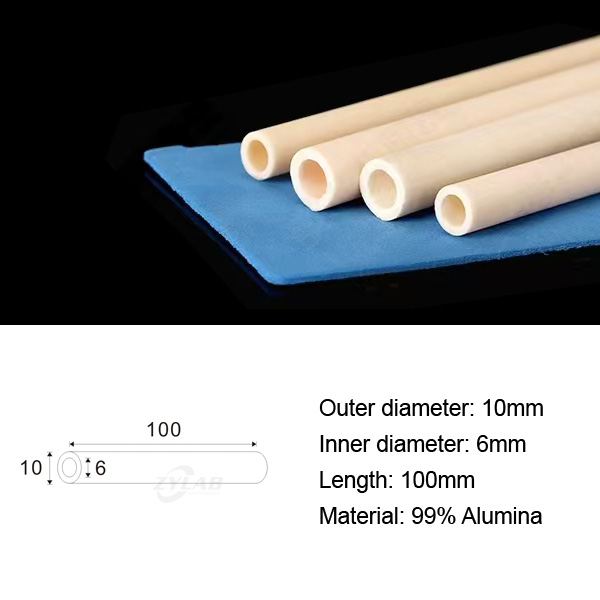

Specifications for Alumina Ceramic Tube
| Alumina Ceramic Tube (ID * OD * Length,UoM:mm) | |||
| 0.25*0.8*100 | 0.4*0.8*100 | 0.6*1*100 | 0.8*1.5*100 |
| 1*2*100 | 1.5*3*100 | 2*3*100 | 2*4*100 |
| 2*6*100 | 3*5*100 | 3*6*100 | 3*7*100 |
| 3*8*100 | 4*5*100 | 4*6*100 | 4*7*100 |
| 4*8*100 | 4*10*100 | 5*7*100 | 5*8*100 |
| 5*10*100 | 6*8*100 | 6*9*100 | 6*10*100 |
| 6.5*12*100 | 7*11*100 | 8*12*100 | 8*15*100 |
| 8*16*100 | 9*13*100 | 10*13*100 | 10*14*100 |
| 10*15*100 | 12*15*100 | 12*16*100 | 15*20*100 |
| 18*25*100 | 20*30*100 | ||
Custom dimensions and shapes are available upon request.
If you need more detailed information, please contact us immediately. We offer free quotes on all products!
Why Choose ZYLAB Alumina Ceramic Tubes?:
-
High-Quality Standards:
Designed and manufactured to meet rigorous industrial and laboratory requirements. -
Custom Solutions:
We offer tailor-made tube dimensions, wall thicknesses, and special designs according to your project needs. -
Reliable Supply and Support:
Fast lead times, expert technical consultation, and global shipping to ensure a seamless purchasing experience.
Looking for high-quality alumina ceramic tubes for your next project?
Contact ZYLAB today to get a personalized quote, discuss custom designs, or learn more about our full range of ceramic products.
